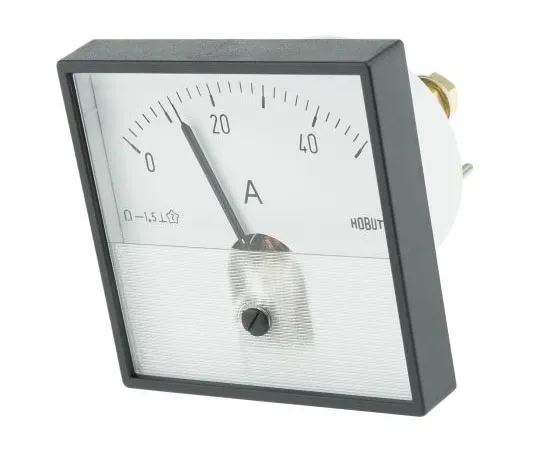

63-7488-82 HOBUT PD72MC Analogue Panel Ammeter 0/50A Direct Connected DC DC, 72mm x 72mm Moving Coil PD721MCS50A/1-001
Product Description
Product Model: 63-7488-82Product Brand: HOBUT Features […]
Contact Us
Product Details
Product Model: 63-7488-82
Product Brand: HOBUT
Features
- Horizontal Scale DC Meters. Accuracy class 1.5, to BS89/IEC51 Ammeter till 50A are for *** without shunt Ammeter 100A (stock no. ; 315-9521 315-9521 ) needs a 100A shunt (stock no. ; 313-788 313-788 ) Ammeter 300A (stock no. ; 315-9537 315-9537 ) needs a 300A shunt (stock no. ; 313-794 313-794 ) Integral scales Flame retardant case to UL94V0 Full scale defection 0 to 75mV Operating temperature range –25 to +40° C 72mm high x 72mm wide, panel cut-out 56mm diameter (suitable cutters stock nos. ; 511-487 511-487 and ; 615-113 615-113 ) U-clamp and 4 pin M3 fixing methods supplied including anti-rotation pin
Spec
- Quantity:1piece
- Maximum Value : 0/50A Direct Connected DC
- Current Type : DC
- Moving Element : Moving Coil
- Cutout Height : 72mm
- Cutout Width : 72mm
- Depth : 30.5mm
- Meter Accuracy : Class 1.5
- Minimum Temperature : -25°C
- Maximum Temperature : 40°C
- Measurement Range : 0/50A Direct Connected DC
- CODE No.:315-9515
