Features

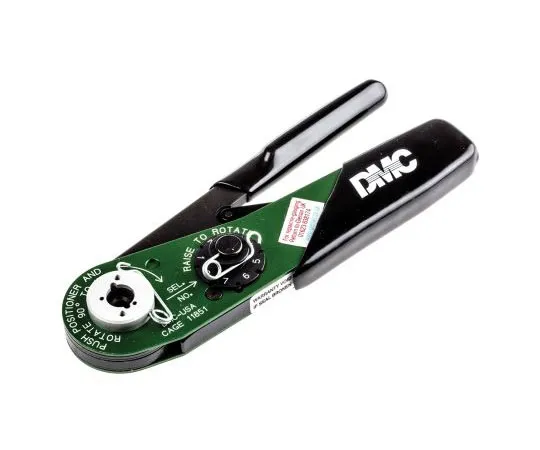

• DMC MH860 Miniature Adjustable Crimp Tool. A quality hand crimping tool for crimping circular connector contacts male and female. This handy tool has a cycle controlled precision ratchet which prevents the tool being opened before the crimping action is completed. This feature ensures accurate and consistently high-quality crimps are achieved each time and prevents partial crimps. An 8 indent selector knob on the tool enables the correct crimp setting to be selected and a positioner guide locks the positioner firmly in place. Features and Benefits. Lightweight Wire size: 16mm ;sup>2 ;/sup> to 22 mm ;sup>2 ;/sup> / 16-28 AWG 8-step selector knob for crimp depth selection Dual ratchet mechanism ensures that a full crimp cycle is achieved Minimum maintenance required Qualified to MIL-DTL-22520/7 and AS22520/7. Positioner. A positioner is not supplied with the tool and must be purchased separately. Typical Applications:. Maintenance ; repair Electrical Installations Computer Interfacing Cable assemblies. FAQ: How easy are they to ***? They are very easy to ***, choose the male or female pin for application, insert the wire into the pin then open the crimp tool, insert into the hole of the indent crimper and squeeze until the cycle finishes. How do you maintain the product? There is very little maintenance required for this tool, keep the indenter tips free of debris and dirt. The Importance of a High-Quality Crimp When a crimping tool is ***d on a terminal, two crimps take place at the same time. One is the electrical connection between the conductor and terminal. The other is the insulation crimp which provides strain relief against vibration and tension. It is important that the electrical connection is gas-tight without any voids between the wire strands and the terminal. If there any voids present, then corrosion can occur causing resistance and excessive heat which damages the electrical connection. Using a good quality crimping tool will ensure that a full, gas-tight crimp is produced preventing future deterioration of the electrical connection and insulation breakage.
