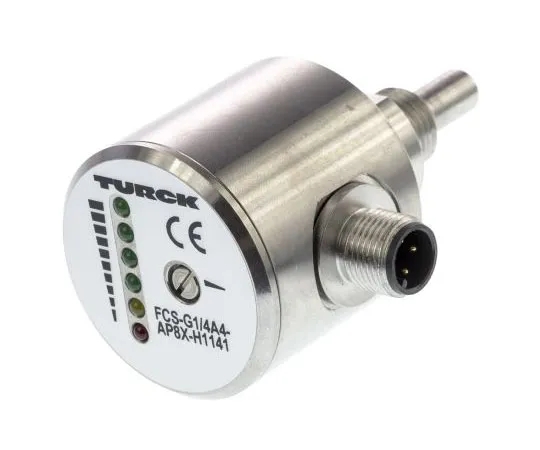

63-7487-43 Turck, 1 → 150 (Water) cm³/s, 3 → 300 (Oil) cm³/s Flow Controller, M12 Connector, PNP, 21 → 26 V FCS-G1/4A4-AP8X-H1141
Product Description
Product Model: 63-7487-43Product Brand: Turck Features […]
Contact Us
Product Details
Product Model: 63-7487-43
Product Brand: Turck
Features
- Digital Flow Control Sensor. Sensor and signal processor in one stainless steel compact housing On-delay time: 8s (typical) Ingress protection to IP67 Simple adjustment via LED bar graph and potentiometer Response time: 12s max. Switch on and off times: 2s typical Output - PNP transistor; short-circuit proof; reverse polarity protected Fluid temperature range: –25 to +80°C (100°C for 10 minutes max.) M12, four-pin plug Flow rates: 1 to 150cm/s (water); 3 to 300cm/s (oil); 2 to 30m/s (air)
Spec
- Quantity:1piece
- Maximum Flow Rate : 1 → 150 (Water) cm³/s, 3 → 300 (Oil) cm³/s
- Electrical Connection : M12 Connector
- Control Output : PNP
- Mounting Style : Compact
- Supply Voltage : 21 → 26 V dc
- Display Screen : LED
- Pipe Diameter Range : 1/4 in
- Minimum Operating Temperature : -25°C
- Maximum Operating Temperature : +80°C
- CODE No.:313-2425
