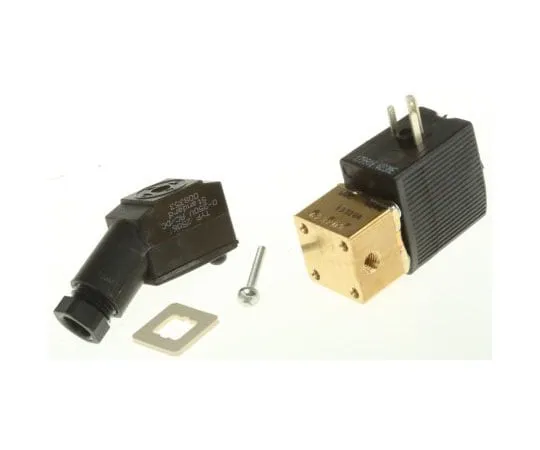

63-7487-38 Burkert Solenoid Valve 134143, 3 port , NC, 24 V dc, M5 134143
Product Description
Product Model: 63-7487-38Product Brand: Burkert Feature […]
Contact Us
Product Details
Product Model: 63-7487-38
Product Brand: Burkert
Features
- 6012 Series 3//2 way, Miniature Normally Closed Solenoid Valves – Threaded Port Connection. Coil changed easily with valve in place Coil can be locked in any one of four 90° positions or move free between, as required Brass body, polyamide coil and FKM high quality seal material Suitable for compressed air, water, hydraulic oil Operating temperature –10 to +100°C max. Power consumption 4W DC; 9VA (Inrush); 6VA (Hold) Protection to IP65 with cable plug DIN43650C
Spec
- Quantity:1piece
- Supply Voltage : 24 V dc
- Number of Ports : 3
- Operation : Direct
- Connection : M5 Metric Female
- Connection Size : M5
- Default Valve Position : NC
- Suitable Applications : Liquid, Neutral Gas
- Type : 3/2
- Orifice Diameter : 1.2mm
- Body Material : Brass
- Maximum Working Pressure : 10 bar
- Operating Temperature Range : -10 → +55 °C
- Minimum Operating Temperature : -10°C
- Maximum Operating Temperature : +55°C
- Thread Standard or Connection Type : Metric
- CODE No.:313-2015
