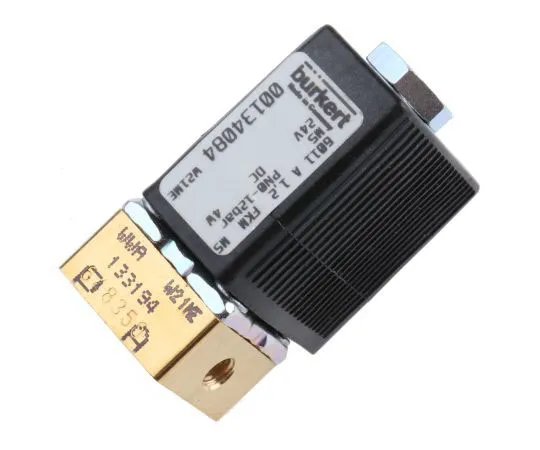

63-7487-36 Burkert Solenoid Valve 134084, 2 port , NC, 24 V dc, M5 134084
Electronic/Electrical Parts and Controll Equipments

63-7487-36 Burkert Solenoid Valve 134084, 2 port , NC, 24 V dc, M5 134084

model: 63-7487-36
brand: Burkert

Product Description

Product Model: 63-7487-36Product Brand: Burkert Feature […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-7487-36
Product Brand: Burkert

Features

  • 6011 Series Two-Way, Miniature Normally Closed Solenoid Valves - Threaded Port Connection. Coil changed easily with valve in place Coil can be locked in four 90° positions or move free between, as required Brass body, polyamide coil and FPM high quality seal material Suitable for compressed air, water, hydraulic oil Operating temperature -10 to +100°C max. Power consumption 4W DC; 9VA (Inrush); 6VA (Hold) Protection to IP65 with cable plug DIN43650C

Spec

  • Quantity:1piece
  • Supply Voltage : 24 V dc
  • Number of Ports : 2
  • Operation : Direct
  • Connection : M5 Metric Female
  • Connection Size : M5
  • Default Valve Position : NC
  • Suitable Applications : Liquid, Neutral Gas, Technical Vacuum
  • Type : 2/2
  • Orifice Diameter : 1.2mm
  • Body Material : Brass
  • Maximum Working Pressure : 12 bar
  • Operating Temperature Range : Maximum of +55 °C
  • Maximum Operating Temperature : +55°C
  • Connection G***er : Female
  • CODE No.:313-1949
