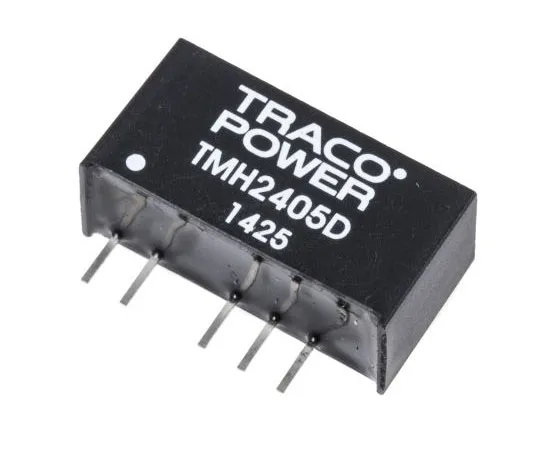

63-7485-85 TRACOPOWER TMH 2W Isolated DC-DC Converter Through Hole, Voltage in 21.6 → 26.4 V dc, Voltage out ±5V dc TMH 2405D
Product Description
Product Model: 63-7485-85Product Brand: TRACOPOWER Feat […]
Contact Us
Product Details
Product Model: 63-7485-85
Product Brand: TRACOPOWER
Features
- MTBF to MIL-HDBK-217E @ 25°C. 3. 2W Single/Dual Output, TMH series. The Tracopower TMH series are ultra miniature, isolated 2 Watt DC/DC-converters in a Singlein-Line package (SIP). Requiring only 1.5 cm2 board space they offer the ideal solution in many space critical applications for board level power distribution. The *** of SMD-technology makes it possible to offer a product with high performance at low cost. SIP7 package High efficiency up to 83% Industry standard pin out Isolated single and dual output 3 year warranty
Spec
- Quantity:1piece
- Output Voltage : ±5V dc
- Input Voltage Range : 21.6 → 26.4 V dc
- Input Voltage Nominal : 24 V dc
- Isolation Voltage : 1000V dc
- Power Rating : 2W
- Output Current : ±200mA
- Mounting Type : Through Hole
- Number of Outputs : 2
- Efficiency : 79%
- Package : SIP
- Load Regulation : ±10%
- Maximum Temperature : +85°C
- Depth : 10.2mm
- CODE No.:311-4865
