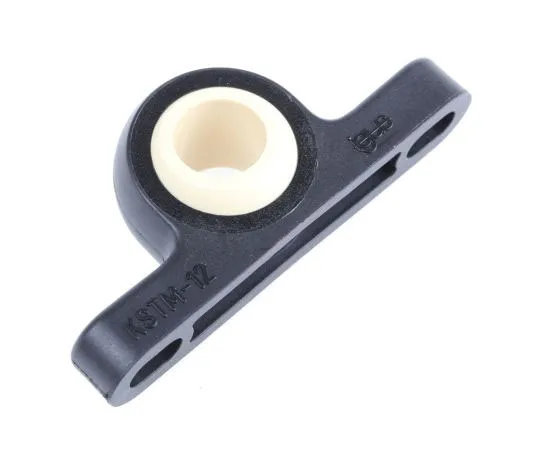

63-7485-40 Pedestal Bearing KSTM-12, 12mm ID KSTM-12
Product Description
Product Model: 63-7485-40Product Brand: Igus Features I […]
Contact Us
Product Details
Product Model: 63-7485-40
Product Brand: Igus
Features
- IGUBAL® bearings are designed to run with a clearance between the shaft and the inside diameter of the ball, to prevent the ball turning in the housing. IGUS® Maintenance Free Pedestal Bearings. Easy to install pedestal bearings compensate for alignment errors and avoid edge pressures. The housings are manufactured from an impact resistant, rigid, thermoplastic composite material. High sliding speeds of up to 1.5m/s for rotary movements and 8m/s for linear movements can be supported
Spec
- Quantity:1piece
- Inside Diameter : 12mm
- Material : Iglide L280, Igumid G
- Centre Height : 14mm
- Mount Hole Size : 5.5 x 9 mm
- Length : 65mm
- Depth : 16mm
- Overall Height : 28mm
- Mount Hole Centre-to-Centre : 46mm
- CODE No.:311-2667
