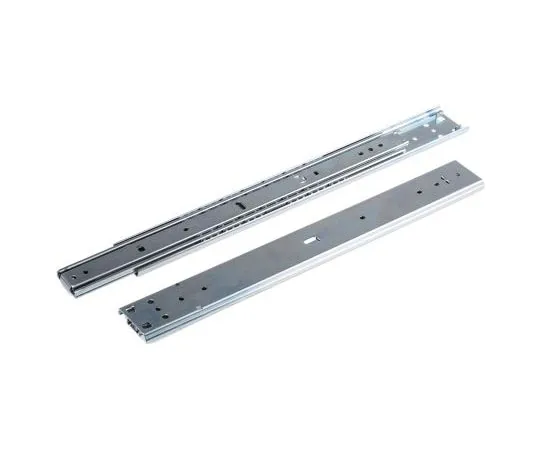

63-7484-66 Accuride Telescopic Rail, 432mm Depth, 67kg Max Load DZ3307-0016
Product Description
Product Model: 63-7484-66Product Brand: Accuride Featur […]
Contact Us
Product Details
Product Model: 63-7484-66
Product Brand: Accuride
Features
- All fitting positions must be ***d to achieve maximum load rating. Flat mounting reduces stated load carrying capacity to approximately 25%. Models 305//307 are dividable for easy assembly/disassembly. Model 305 disconnects for easy assembly/disassembly and has recessed mounting capability to reach a 100% extension with just 10mm side space. Models 201/204/301/305/3307/3607/3832. Strong steel construction, 35.3mm high, electro zinc plated and clear chromate Precision high performance bearings Mounting brackets and fittings supplied separately Recomm***ed fixings M4 cheese head screws (2.5mm high x 9.6mm diameter maximum) to DIN 85 Front disconnect and lockout features available for Models 204, 305,3307 and 3607
Spec
- Quantity:1set
- Type : Telescopic Slide
- Maximum Load : 67kg
- Material : Steel
- Depth : 432mm
- Width : 12.7mm
- Height : 50.8mm
- Slide Length Closed : 406mm
- Extension : 100+%
- Lockout : Yes
- Series : DZ3307
- CODE No.:310-4975
