Electronic/Electrical Parts and Controll Equipments

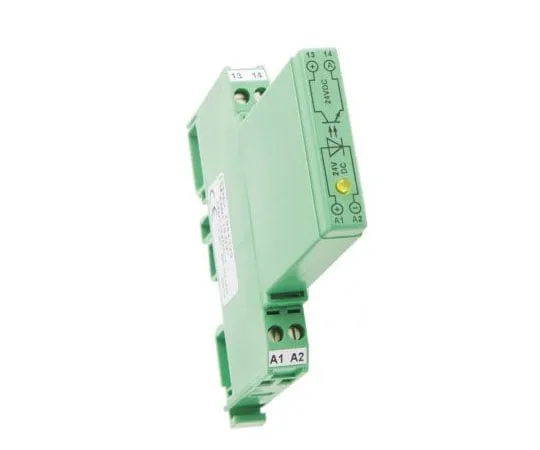

63-7483-69 Phoenix Contact Optocoupler, Max. Forward 24 V, Max. Input 4.4 mA, 75mm Length, DIN Rail Mounting Style 2944229
model:
63-7483-69
brand:
Phoenix Contact
Product Description
Product Model: 63-7483-69Product Brand: Phoenix Contact […]
Contact Us
Product Details
Product Model: 63-7483-69
Product Brand: Phoenix Contact
Features
- Solid State Module, Series EMG-OV. EMG-OV power opto couplers are ***d as the modular interface in all industrial fields for signal amplification to 230V / 3A and for electrical isolation. Input and output *** suppressors, integrated operating display and a 3.5 kV test voltage ensure maximum safety and reliability.
Spec
- Quantity:1piece
- Maximum Forward Voltage : 24 V
- Maximum Input Current : 4.4 mA
- Isolation Voltage : 3.5kV
- Pin Count : 4
- Mounting Style : DIN Rail
- Minimum Operating Temperature : -20°C
- Maximum Operating Temperature : +50°C
- Length : 75mm
- Width : 10mm
- Depth : 102mm
- Series : EMG 10-OV- 24DC/24DC/1
- CODE No.:308-1406
