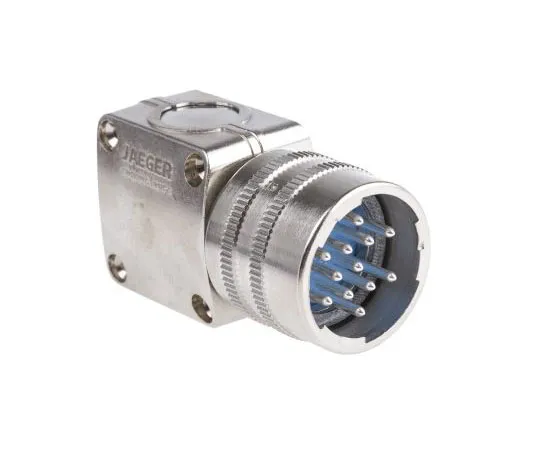

63-7483-53 Jaeger 5326 Series, 12 Way Cable Mount MIL Spec Circular Connector Plug, Pin Contacts,Shell Size 2, Quick Connect 5326 620 06
Electronic/Electrical Parts and Controll Equipments

63-7483-53 Jaeger 5326 Series, 12 Way Cable Mount MIL Spec Circular Connector Plug, Pin Contacts,Shell Size 2, Quick Connect 5326 620 06

model: 63-7483-53
brand: Jaeger

Product Description

Product Model: 63-7483-53Product Brand: Jaeger Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-7483-53
Product Brand: Jaeger

Features

  • "Quick" series - Plugs. "Quick" series plugs are available in sizes 1 and 2, in the most commonly ***d configurations. They lock onto "quick" series sockets with a click after 1/6 of a turn. Available in male or female versions. Fitted with a square, rear connector, made up of two half-shells. This connector features three positions for identical cable connections, which are oriented differently and which may be ***d simultaneously. Theseopenings may accomodate one or more cable grips (available separately). Un***d openings must remain plugged by the original blanking plates.

Spec

  • Quantity:1piece
  • Number of Contacts : 12
  • G***er : Male
  • Contact G***er : Male
  • Current Rating : 15A
  • Shell Size : 2
  • Mounting Type : Cable Mount
  • Military Standard : MIL-DTL-5015
  • Termination Method : Solder
  • IP Rating : IP50, IP54
  • Mating Type : Quick Connect
  • Body Orientation : Straight
  • Series : 5326
  • Minimum Operating Temperature : -50°C
  • CODE No.:307-9762
