Electronic/Electrical Parts and Controll Equipments

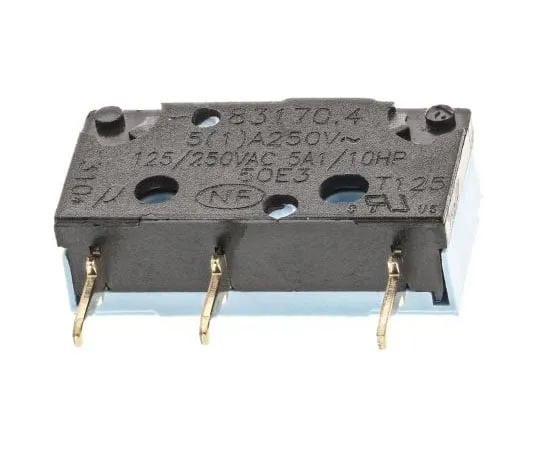

63-7483-21 NO/NC Plunger Microswitch, 5 A @ 250 V ac 83 170 408
Product Description
Product Model: 63-7483-21Product Brand: Crouzet Feature […]
Contact Us
Product Details
Product Model: 63-7483-21
Product Brand: Crouzet
Features
- UTE; VDE; BS; UL; CSA etc. V4 Subminiature Microswitches DIN 41635 B. Miniswitches available in two versions: - standard inverter 5 A / 250 VAC - low-level inverter: 0.1 A. Choice of operation accessories (available separately): levers (flat or with rollers) are proposed in two lengths with two possible mounting positions on the microswitch.
Spec
- Quantity:1piece
- Actuator Type : Plunger
- Terminal Type : Solder
- Contact Current Rating : 5 A @ 250 V ac
- Contact Configuration : NO/NC
- Operating Force : 0.6 N
- Minimum Operating Temperature : -20°C
- Maximum Operating Temperature : +125°C
- Contact Material : Silver Nickel
- Case Material : PET
- Mechanical Life : 3 x 10^7Operations
- Release Force : 0.1N
- Operating Temperature Range : -20 → +125°C
- CODE No.:307-4004
