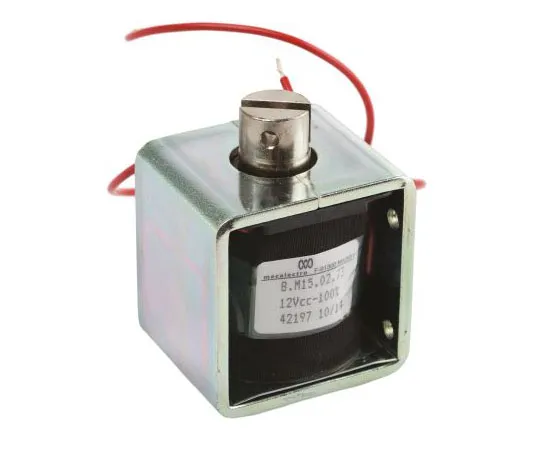

63-7483-13 Pull Action DC D-Frame Solenoid, 15mm stroke, 15W, 12 V dc 8.M15 02 73 12 VCC 100%
Product Description
Product Model: 63-7483-13Product Brand: Mecalectro Feat […]
Contact Us
Product Details
Product Model: 63-7483-13
Product Brand: Mecalectro
Features
- 8M15 series single-acting linear electromagnets, standard ***. Single-acting linear electromagnets for automated systems. Push or pull models available. Coils for permanent duty (duty factor 100 %). For intermittent operation, a superior operating effort may be obtained with a power supply that is above the rated voltage, up to 50 Vdc.
Spec
- Quantity:1piece
- Maximum Stroke : 15mm
- Action : Pull
- Duty Cycle : 100%
- Magnetic Force : 1 → 15N
- Closed Power Continuous : 15W
- Supply Voltage : 12 V dc
- Length : 50.8mm
- Width : 49mm
- Depth : 41.3mm
- Weight : 570g
- Dimensions : 50.8 x 49 x 41.3
- CODE No.:307-3556
