63-7483-10 Pull Action DC D-Frame Solenoid, 12mm stroke, 10.5W, 24 V dc 8.M14 02 73 24 VCC 100%
Product Description
Product Model: 63-7483-10Product Brand: Mecalectro Feat […]
Contact Us
Product Details
Product Model: 63-7483-10
Product Brand: Mecalectro
Features
- 8M14 series single-acting linear electromagnets, standard ***. Single-acting linear electromagnets for *** in automation and small mechanisms. Push or pull models available. Coils for permanent duty (duty factor 100 %). For intermittent operation, a superior operating effort may be obtained with a power supply that is above the rated voltage, up to 50 Vdc.
Spec
- Quantity:1piece
- Maximum Stroke : 12mm
- Action : Pull
- Duty Cycle : 100%
- Magnetic Force : 2 → 8N
- Closed Power Continuous : 10.5W
- Supply Voltage : 24 V dc
- Length : 57.7mm
- Width : 32mm
- Depth : 25.4mm
- Weight : 250g
- Dimensions : 57.7 x 32 x 25.4
- CODE No.:307-3528
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-5083-17 Extension Cable Type J, -10 → +220 °C 2 Core PVC Sheath 2m 768-6632
model: 63-5083-17
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments

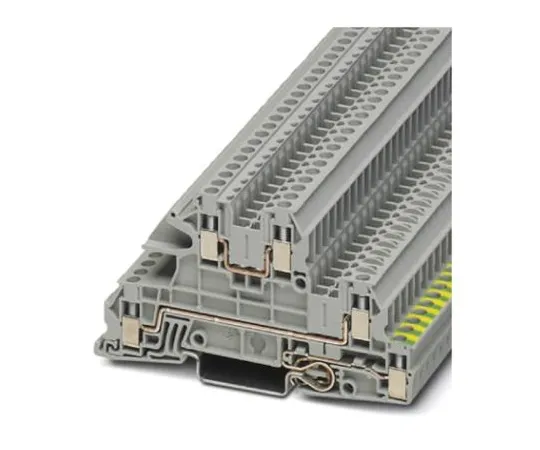

64-1572-77 Phoenix Contact, UTI 2.5-PE/L/L Series , 400 V Earth Terminal Block, Screw Termination 3076029
