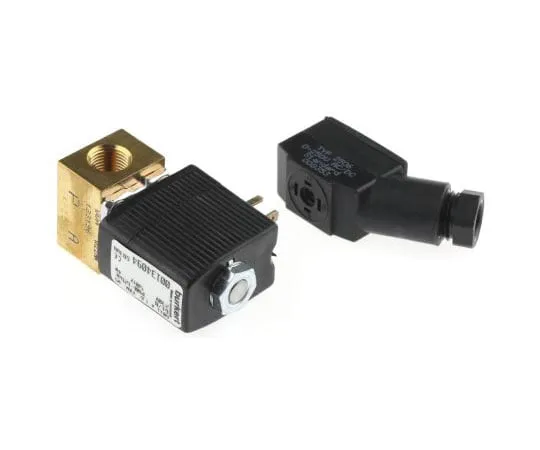

63-7482-93 Burkert Solenoid Valve 134094, 2 port , NC, 230 V ac, 1/8in 134094
Product Description
Product Model: 63-7482-93Product Brand: Burkert Feature […]
Contact Us
Product Details
Product Model: 63-7482-93
Product Brand: Burkert
Features
- 6011 Series Two-Way, Miniature Normally Closed Solenoid Valves - Threaded Port Connection. Coil changed easily with valve in place Coil can be locked in four 90° positions or move free between, as required Brass body, polyamide coil and FPM high quality seal material Suitable for compressed air, water, hydraulic oil Operating temperature -10 to +100°C max. Power consumption 4W DC; 9VA (Inrush); 6VA (Hold) Protection to IP65 with cable plug DIN43650C
Spec
- Quantity:1piece
- Supply Voltage : 230 V ac
- Number of Ports : 2
- Operation : Direct
- Connection : 1/8 in G Female
- Connection Size : 1/8in
- Default Valve Position : NC
- Suitable Applications : Liquid, Neutral Gas, Technical Vacuum
- Type : 2/2
- Orifice Diameter : 1.6mm
- Body Material : Brass
- Maximum Working Pressure : 12 bar
- Operating Temperature Range : Maximum of +55 °C
- Maximum Operating Temperature : +55°C
- Maximum Closing Time : 15ms
- CODE No.:307-0248
