Electronic/Electrical Parts and Controll Equipments

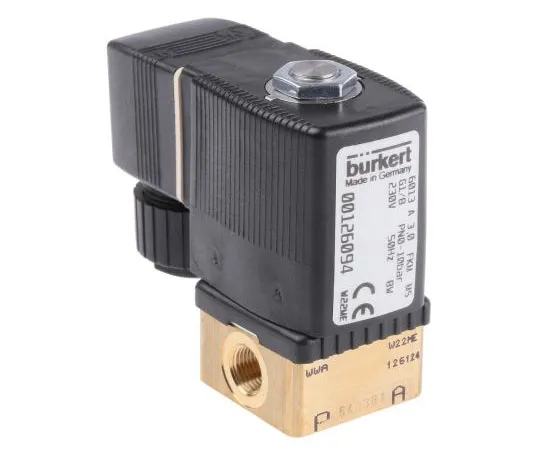

63-7482-86 Burkert Solenoid Valve 126094, 2 port , NC, 230 V ac, 1/8in 126094
Product Description
Product Model: 63-7482-86Product Brand: Burkert Feature […]
Contact Us
Product Details
Product Model: 63-7482-86
Product Brand: Burkert
Features
- Two-way Compact Solenoid Valves, Type 6013. Modular direct acting solenoid valve system. Brass body with polyamide coil Coil can be changed easily with valve in place Coil can be locked in four by 90° positions or move free between, as required FPM high quality seal material Suitable for compressed air; natural gas; water and hydraulic oil Maximum operating temperature: 55°C Power consumption: 8W (DC), 24VA (Inrush, AC); 17VA (Hold, AC) Protection to IP65, with cable plug DIN 43650C
Spec
- Quantity:1piece
- Supply Voltage : 230 V ac
- Number of Ports : 2
- Operation : Direct
- Connection : 1/8 in G Female
- Connection Size : 1/8in
- Default Valve Position : NC
- Suitable Applications : Liquid, Neutral Gas
- Type : 2/2
- Orifice Diameter : 3mm
- Body Material : Brass
- Maximum Working Pressure : 10 bar
- Operating Temperature Range : -10 → +55 °C
- Minimum Operating Temperature : -10°C
- Maximum Operating Temperature : +55°C
- Thread Standard or Connection Type : G
- CODE No.:306-9967
