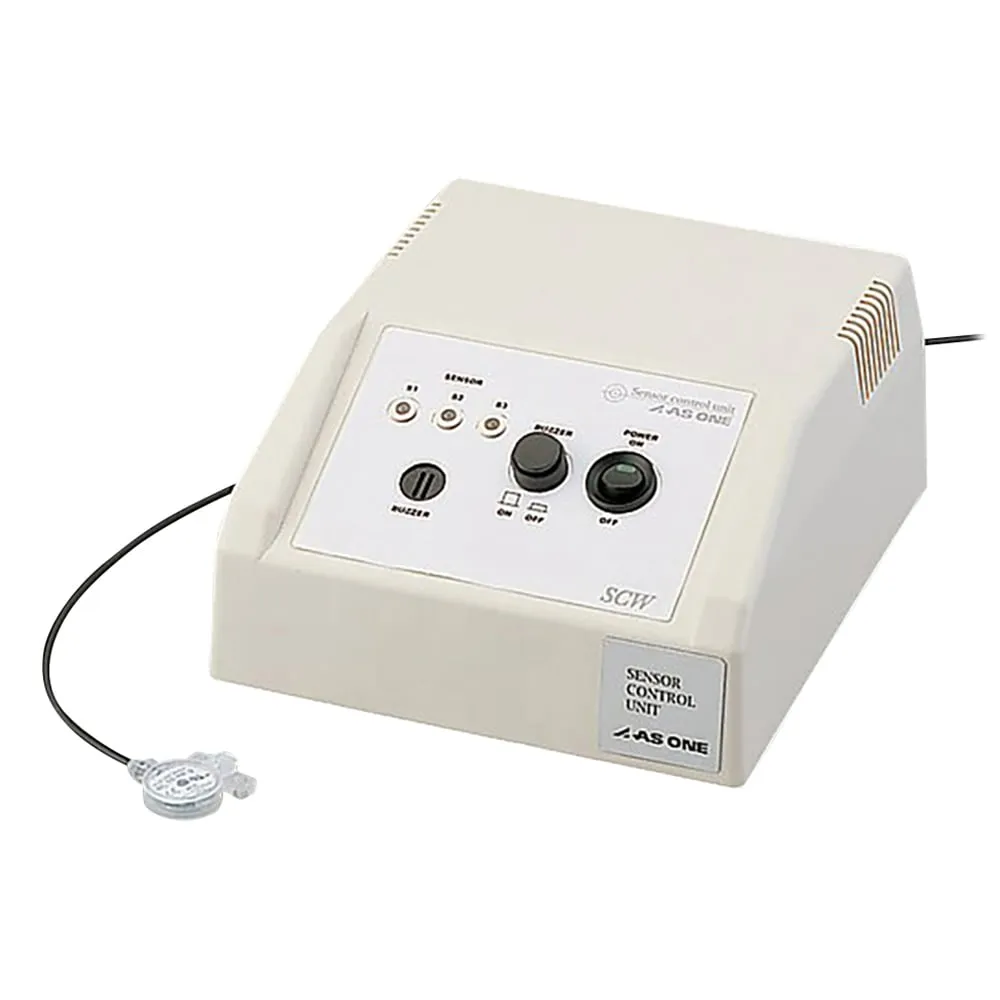

1-4308-01 Leak Sensor System SCW-01-L
model:
1-4308-01
category:
toner
Product Description
Product Model: 1-4308-01 Features When moisture is dete […]
Contact Us
Product Details
Product Model: 1-4308-01
Features
- When moisture is detected, the LED turns red and the buzzer sounds.
- When the LT-109 is connected, the AC100V output can be turned ON/OFF in synchronization with moisture detection (Normal ON and normal OFF can be switched).
Spec
- Model number: SCW-01-L
- Leak sensor system
- Size: 185 x 229 x 98 (excluding rubber foot) mm
- Indicator lamp: Sensor state Indicator lamp (3 places), power Indicator lamp
- Sensor connection port: 3 places
- Output: Buzzer (ON/OFF switch), Relay contact (100VAC/3A, DC30V/3A)
- Power supply: 100VAC 50/60Hz 0.3A
- Power cord length: 1.8m
- Accessories: Leak sensor x 1, AC adapter
-
- Material: Body/PP (polypropylene), Cable/PVC (vinyl chloride resin)
- Applicable medium: Water
- Cable length: 2m (DC15V)
- *Do not use the equipment in an atmosphere such as corrosive gas.
