Features

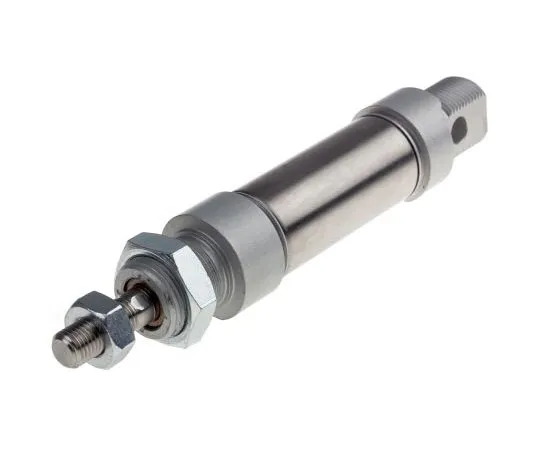

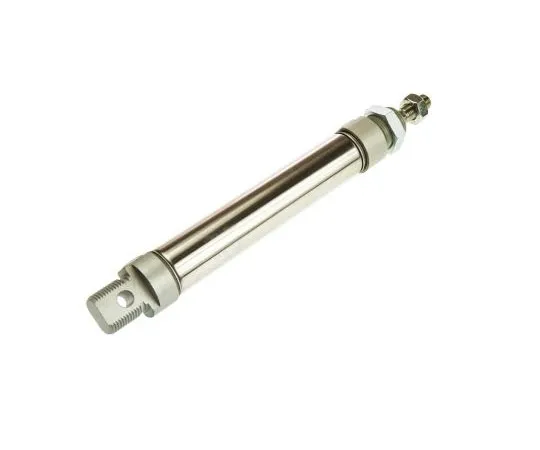

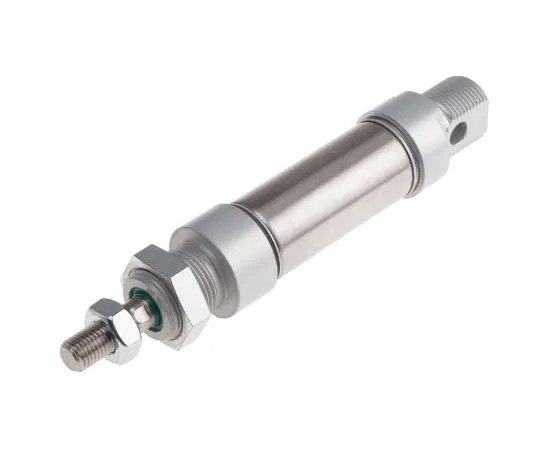

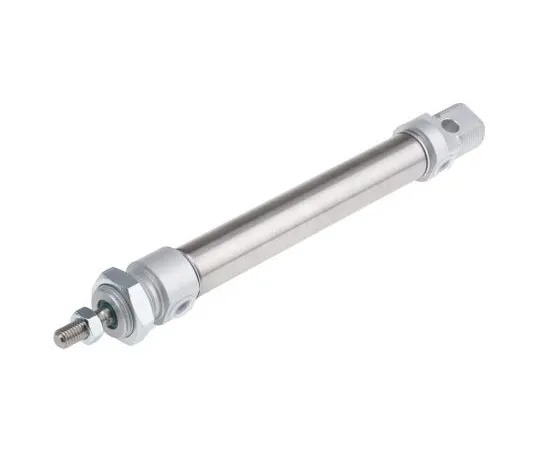

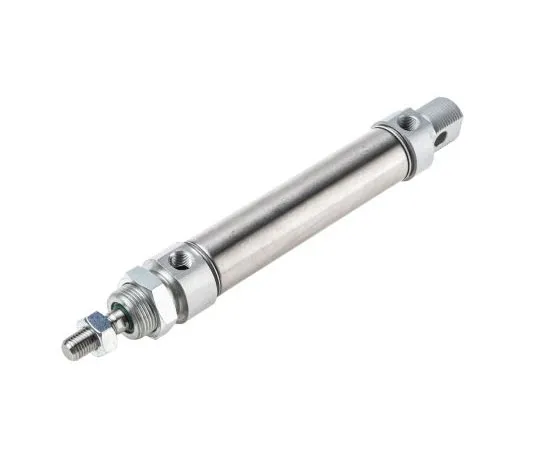

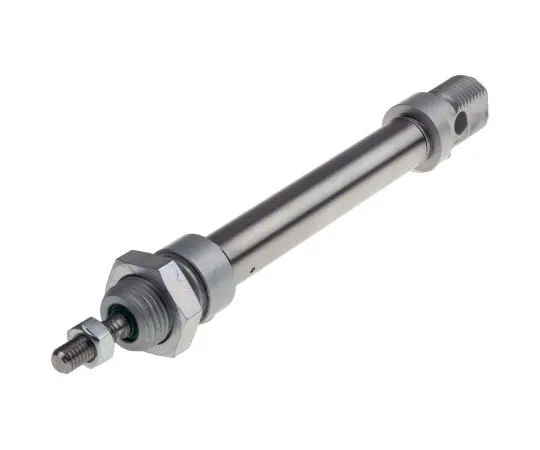

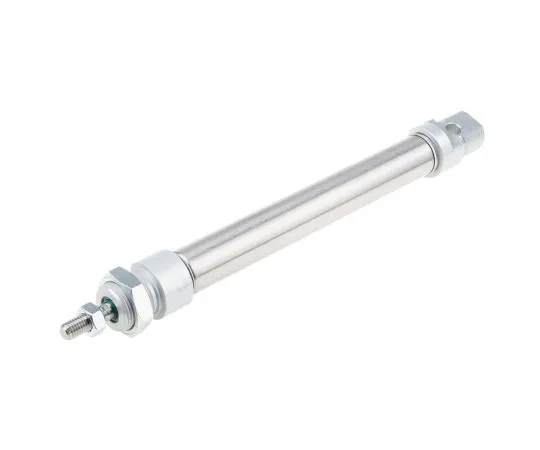

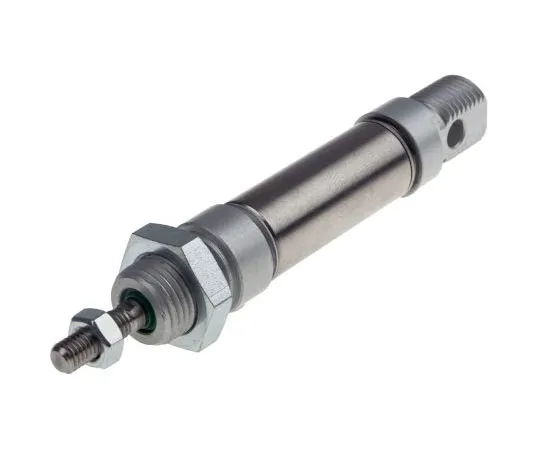

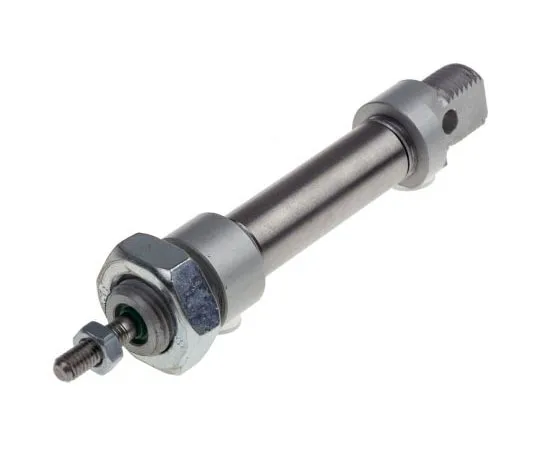

• Outward Thrust and Return Thrust figures quoted are at 6 bar. 10 - 25mm Diameter. The RS range of ISO 6432 cylinders give high performance and long life even when ***d with non-lubricated air. Available in both single acting and double acting versions, with magnetic stainless steel pistons on all models Ø12mm and above. AISI 304 stainless steel body AISI 303 stainless steel piston rod Sintered bronze nose bearing Pre-lubricated NBR seals Anodised aluminium *** caps End of stroke buffer Pressure range: 1-10 bar Ambient temp. Range: -20°C to +80°C Medium: Compressed air, filtered, lubricated or non-lubricated Supplied with nose nut and piston rod nut
