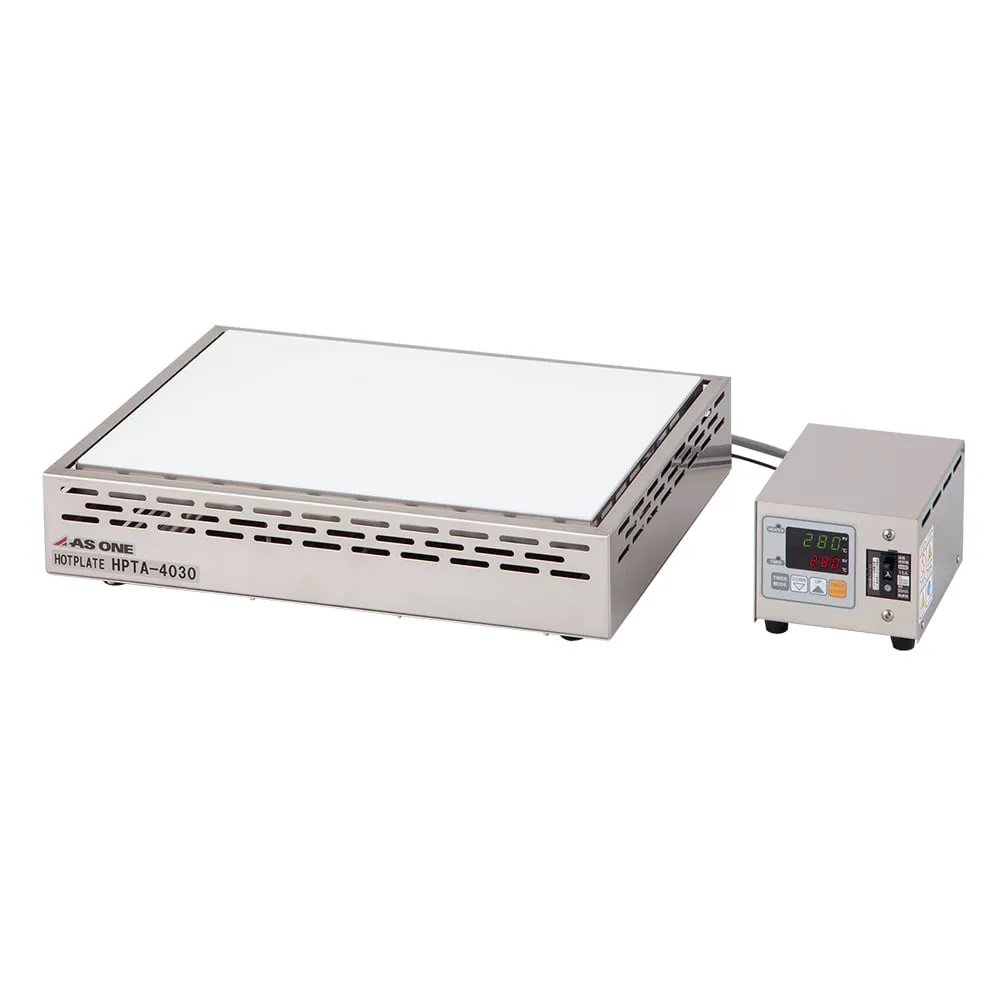

4-1723-01-22 Draft Hot Plate with Pre-Shipment Inspection Document HPTA-4030
Product Description
Product Model: 4-1723-01-22Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 4-1723-01-22
Product Brand: AS ONE Corporation
Features
- It is a hot plate considering chemical resistance, acid resistance, etc. for each component, assuming that it is ***d in draft.
- The temperature controller is separate and can be pulled out from the draft.
- The housing is SUS316, the top plate is fluorine coated, the internal wiring is fluorine coated, and the heater ***s Incoloy 800 to reduce deterioration due to atmospheric erosion.
- An earth leakage breaker is ***d to reduce the risk of leakage due to erosion, etc.
- Hot plate with enhanced chemical resistance.
Spec
- Maximum temperature (°C): 280
- Plate Size (mm): 400 x 300
- Material: Body/SUS316, Control Part/SUS304, Tabletop/Aluminum + Ceramic Coating (Fluororesin Bl***)
- Size: Body: 440 x 340 (dimension 347 including projection) x 105 mm, Control: 120 x 160 (dimension 175 including projection) x 103 mm
- Weight: Main Unit: Approx. 10 kg, Control Unit: Approx. 1.7 kg
- Heater: Sheath Heater 1400 W
- Temperature Controller: Display Accuracy ±2%, PID Control, Temperature Control Timer (0~99 hours 59 minutes, with device shutdown function)
- Sensors: K Thermocouples
- Safety device: ground fault breaker 15 A
- Power: 100 VAC 50/60Hz Power Cord (2.5 m cord with 3P ground)
- Maximum power consumption: 1450 W
- Cable length between units: 2 m on the hot plate side/1 m on the control part side Total 3 m
- *Although durable parts are ***d, corrosion resistance is not guaranteed.
- *This product is not explosion-proof.
