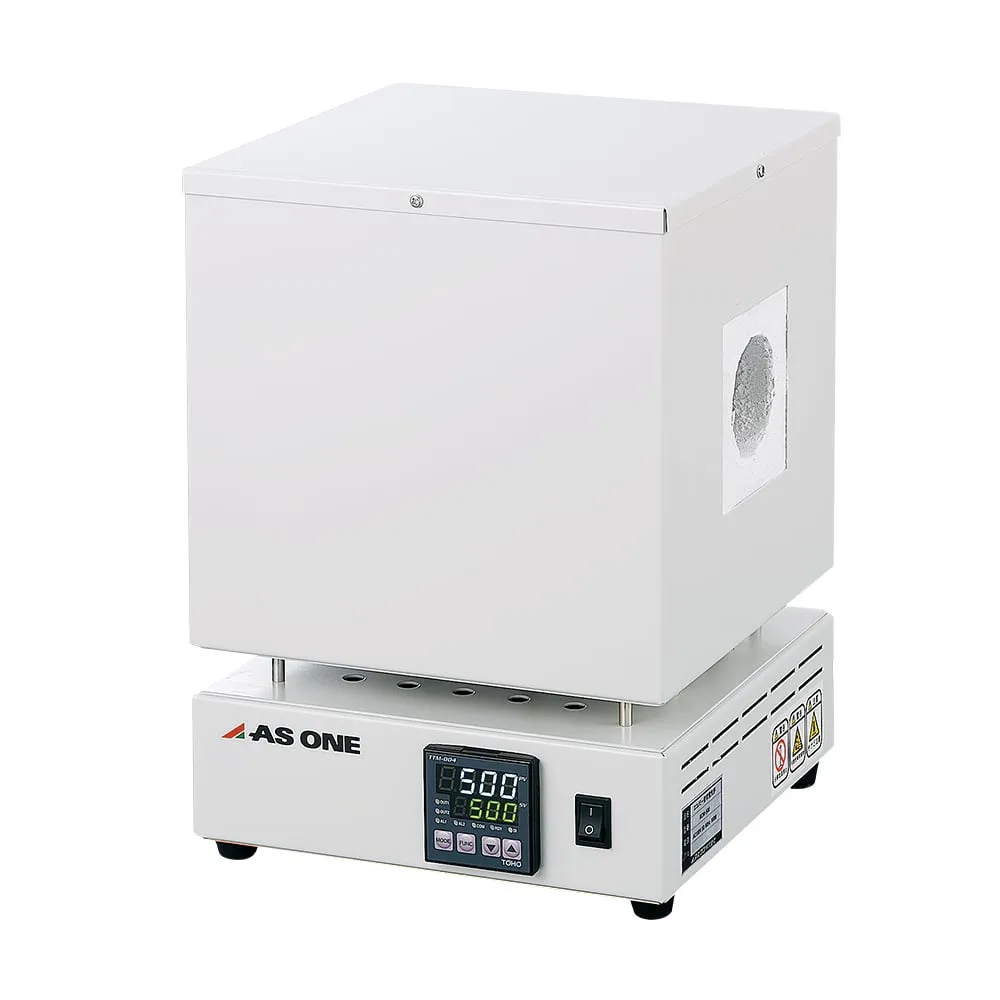

3-9512-01-22 Economy Tubular Electric Furnace with Pre-Shipment Inspection Document ROM-500
Product Description
Product Model: 3-9512-01-22Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 3-9512-01-22
Product Brand: AS ONE Corporation
Features
- Easy-to-*** compact and personal tubular electric furnace
- Compact design: An easy-to-handle, compact, general-purpose tubular electric furnace.
- Speedy temperature rise: High performance type with a quick temperature rise time of approximately 28 minutes to maximum temperature.
- Heating in an inert environment is possible: By using a gas replacement unit, heating can be performed while replacing with inert gas.
- Temperature setting and furnace temperature can be checked by digital display.
- The material of the core tube can be selected according to the application.
Spec
- External Dimensions (mm): 210 x 210 x 290
- Furnace Inner Dimension (mm): φ50 x 140
- Internal Capacity (L): 0.3
- Temperature Setting Range: 100~900°C/Normal Temperature: 800°C
- Temperature setting resolution: 1°C
- Time setting resolution: 1 minute
- Timer: ON/OFF/SV Timer
- Temperature control system: PID control
- Safety Mechanism: Sensor Abnormality Detection, Excess Temperature Rise Prevention Relay, Overcurrent F***
- Sensors: K Thermocouples
- Heater Capacity: 800 W
- Material: Exterior/Steel Heat-Resistant Coating, Furnace/Ceramic Fiber
- Power: 100 VAC 50/60Hz
- Weight: Approx. 5.2 kg
- *Core tube is not attached to the body. Be sure to *** the core tube during ***.
