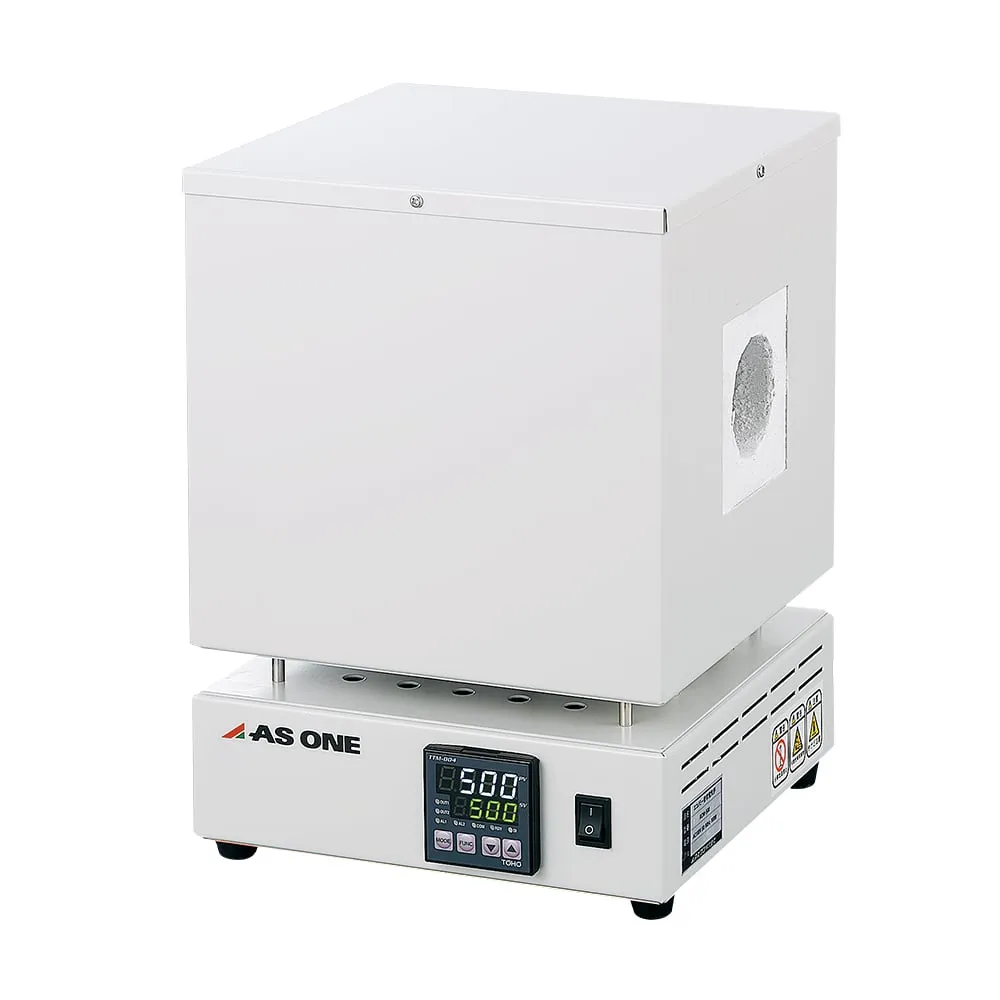

3-9512-01 Economy Tubular Electric Furnace ROM-500
Product Description
Product Model: 3-9512-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 3-9512-01
Product Brand: AS ONE Corporation
Features
- Easy-to-*** compact and personal tubular electric furnace
- Compact design: A compact, personal, general-purpose tubular electric furnace.
- Speedy temperature rise: A high-performance type with a rapid temperature rise time of approximately 28 minutes to the maximum temperature.
- Heating under inert environment possible: By using the gas substitution unit, heat can be performed while replacing with inert gas.
- Temperature setting and furnace temperature can be checked by digital display.
- You can choose the material of the core tube according to the application.
Spec
- Outer dimensions (mm): 210 x 210 x 290
- Inner dimensions (mm): 50 x 140
- Inner capacity (L): 0.3
- Temperature settings range: 100 to: 900 °C/Temperature: 800 °C
- Temperature setting resolution: 1 °C
- Time setting resolution: 1 minute
- Timer: ON/OFF/SV timer
- Temperature control method: PID control
- Safety mechanism: Sensor abnormality detection, over-rise prevention relay, over-current f***
- Sensor: K class thermocouple
- Heater capacity: 800W
- Material: Exterior/Steel, Heat resistant coating, Furnace/Ceramic fiber
- Power supply: AC100V 50/60Hz
- Weight: about 5.2kg
- *There is no core tube attached to the main body. Be sure to *** the core tube during operation.
