Electronic/Electrical Parts and Controll Equipments

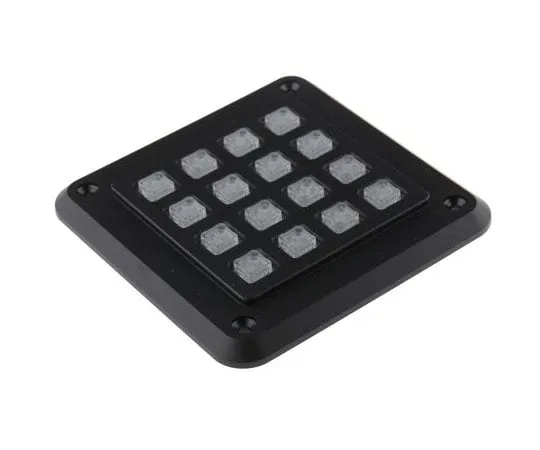

63-7479-75 Storm IP54 16 Key Polymer Keypad GS160202
Product Description
Product Model: 63-7479-75Product Brand: Storm Features […]
Contact Us
Product Details
Product Model: 63-7479-75
Product Brand: Storm
Features
- User-configurable Keypad. Featuring keytops that can be configured or customised. The unique "snap on" keytop cover encapsulates a polymer leg*** tile. Leg*** tiles can be selected from an extensive range library of characters or symbols to suit many applications. Alternatively, keytop graphics can be customised by backing the transparent leg*** tile with a second coloured tile. The impact resistant keytop cover, once snapped into place, provides a permanent tamper resistant lens, protecting the leg*** from wear, physical damage, water ingress and unauthorised removal. Ideal for *** in industrial, commercial, point of sale or public applications and rated to IP54. High impact polymer casing and keytops (with configurable keytop graphics) "Snap on" keytop cover encapsulates a polymer leg*** tile Leg*** tiles available from an extensive library of characters or symbols to suit many applications Keytop graphics may be customised by backing the transparent leg*** tile with a second coloured tile Switching action Available in 4, 12 and 16 Key formats
Spec
- Quantity:1piece
- Keypad Layout : 4 x 4
- Number of Keys : 16
- Keypad Output : Matrix
- IP Rating : IP54
- Case Material : Polymer
- Case Colour : Black
- Mechanical Life Per Key : 2000000Operations
- Contact Material : Gold Over Nickel Plated
- Depth Behind Panel : 8mm
- Minimum Operating Temperature : -20°C
- Operating Temperature Range : -20 → +60°C
- CODE No.:301-3908
