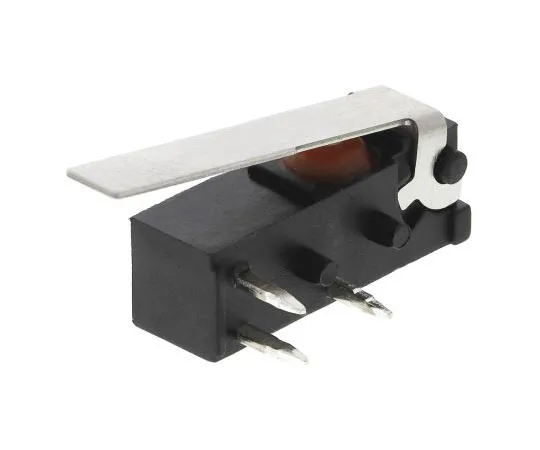

63-7479-65 SP-NO/NC Lever Microswitch, 1 A @ 250 V ac F1NST8A1
Product Description
Product Model: 63-7479-65Product Brand: Saia-Burgess Fe […]
Contact Us
Product Details
Product Model: 63-7479-65
Product Brand: Saia-Burgess
Features
- Sub-Miniature Side Mounted PCB Switch. From Saia-Burgess, this selection of sub-miniature switches are small size and low current, and are available with either a lever or plunger style actuator. Designed to side-mount to a printed circuit board, these robust sub-miniature switches have a high mechanical life. Features and Benefits:. Single pole changeover PCB connection Sealed to IP54 Flux Resistant Terminals SPCO silver plated contacts Contact Rating; 1A; 2A, 250Vac; 30Vdc
Spec
- Quantity:1bag(100pieces)
- Actuator Type : Lever
- Terminal Type : Through Hole
- Contact Current Rating : 1 A @ 250 V ac
- Contact Configuration : SP-NO/NC
- IP Rating : IP54
- Operating Force : 0.6 N
- Minimum Operating Temperature : -40°C
- Maximum Operating Temperature : +85°C
- Contact Material : Fine Silver
- Case Material : Polyamide
- Mechanical Life : 10^7Operations
- Release Force : 0.09N
- Operating Temperature Range : -40 → +85°C
- CODE No.:173-9356
