Features

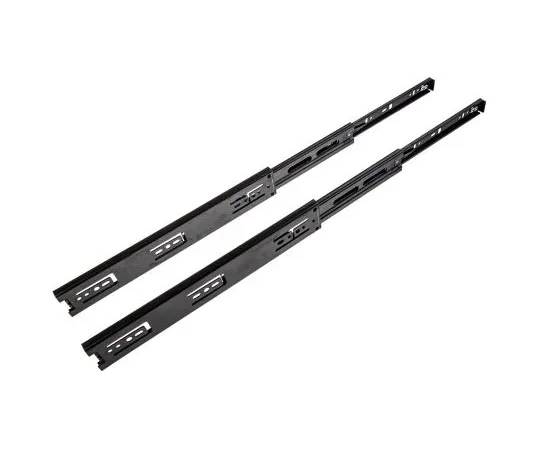

• Accuride DB3832 Series Light Duty Drawer Runners. From Accuride the DB3832 range of telescopic ball bearing side mounting drawer runners with a full 100% extension capability made from durable black zinc plated steel. These runners are able to hold up to 50 kg. Self-Cleaning Ball Retainer. These Accuride drawer runners use a durable ball bearing mechanism which produces a smooth and quiet opening and closing action. An additional feature is the self-cleaning ball retainer which removes foreign particles from between the ball bearings and protects the runner raceways. The lubricant provided should last for the duration of the life of the runner. If the runners need cleaning a quality grease for high pressure use can be applied. Front Disconnect. These drawer runners have a front disconnect feature which allows the draw to be easily disconnected from the main runner assembly. Disconnection is carried out by depressing a lever, the drawer can then be removed. Hold In. These drawer runners have a hold-in detent feature which holds the runners firmly in position keeping the drawer closed until extra pressure is applied. This feature prevents the drawer from from rolling open. Cam Adjustment. These drawer runners have a cam adjuster on the front which allows a 3.2 mm adjustment to be made on the drawer front for easy alignment. Key Features and Benefits. Smooth and quiet ball bearing action Up to 50 kg load capacity Made from durable black zinc plated steel 100% full extension capability Self-cleaning ball retainer Front disconnect for simple draw removal Hold In feature for keeping draw securely closed Cam adjustment of 3.2 mm on draw front. Applications. These light duty drawer runners are designed for indoor use only and should be protected from excess moisture, dirt, corrosion and chemical fumes. The most common applications for these runners are storage drawers. Fittings. These drawer slides can be fitted using an M4 screw or a 4mm wood screw or a 6mm Euro screw. Optional Brackets. Optional Brackets are available for use with these drawer slides. These drawer runner brackets can be purchased separately, see stock numbers ; 666-4815 666-4815 , ; 666-4821 666-4821 and ; 666-4824 666-4824
