Features

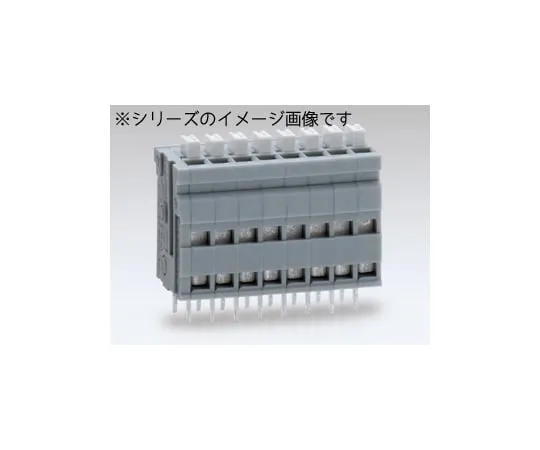

• "Screwless terminal block" is a terminal block that does not require connection screws. By removing the covering of the wire and connecting it to the terminal block with one touch, the workability of the connection is improved. To connect or disconnect wires, simply insert or pull the wire into the insertion hole while holding down the button. No special tool is required. They are for panel mounting, board mounting, relay, etc., and there are also hole diameters that can be mounted on universal boards.
• Figure 1 shows the connection procedure. You can use your finger to operate the button, but using a flathead screwdriver makes it easy to work. As shown in Fig. 2, there is a strip gauge next to the terminal block to guide the length of the wire.
