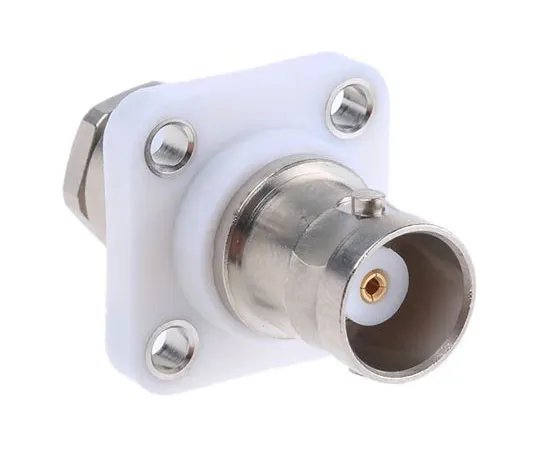

63-7475-11 Radiall Straight 50Ω Flange Mount Bulkhead Fitting BNC Connector, jack, Nickel, Clamp Termination, RG179, RG187, RG188, R141277000
Product Description
Product Model: 63-7475-11Product Brand: Radiall Feature […]
Contact Us
Product Details
Product Model: 63-7475-11
Product Brand: Radiall
Features
- Straight insulated female BNC sockets with square flange. Straight female BNC sockets with flange for connection with cable gland. The plastic part of these sockets enables them to be insulated from the panel upon which they are mounted. These plugs are panel-mounted using four screws (not supplied).
Spec
- Quantity:1piece
- G***er : Female
- Mounting Type : Flange Mount
- Impedance : 50Ω
- Termination Method : Clamp
- Body Orientation : Straight
- Cable Type : RG179, RG187, RG188, RG316
- Bulkhead : Yes
- Operating Frequency : 0 → 4GHz
- Minimum Operating Temperature : -65°C
- Maximum Operating Temperature : +165°C
- Contact Material : Beryllium Copper
- Contact Plating : Gold over Nickel
- CODE No.:295-7605
