Electronic/Electrical Parts and Controll Equipments

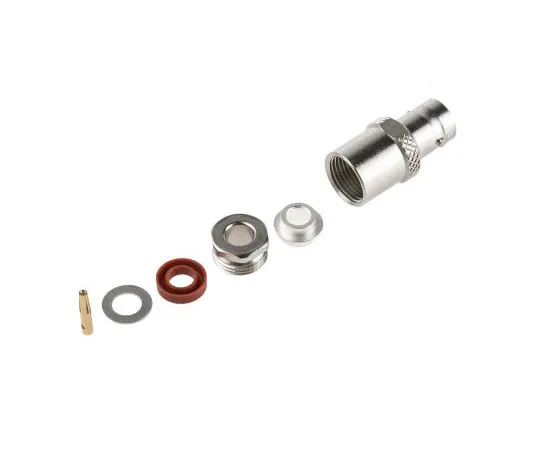

63-7475-07 Radiall Straight 50Ω Cable Mount BNC Connector, jack, Nickel, Clamp Termination, RG141, RG142, RG223, RG400, RG58 R141207000W
Product Description
Product Model: 63-7475-07Product Brand: Radiall Feature […]
Contact Us
Product Details
Product Model: 63-7475-07
Product Brand: Radiall
Features
- Straight clamp jack
Spec
- Quantity:1piece
- G***er : Female
- Mounting Type : Cable Mount
- Impedance : 50Ω
- Termination Method : Clamp
- Body Orientation : Straight
- Cable Type : RG141, RG142, RG223, RG400, RG58
- Bulkhead : No
- Operating Frequency : 0 → 4GHz
- Minimum Operating Temperature : -65°C
- Maximum Operating Temperature : +165°C
- Contact Material : Beryllium Copper
- Contact Plating : Gold
- CODE No.:295-7560
