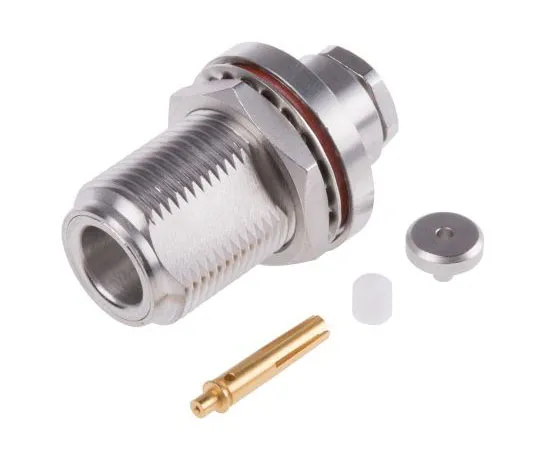

63-7474-74 Radiall 50Ω Straight Panel Mount N Type Connector, jack, Clamp Termination, 0 → 11GHz, RG179, RG187, RG188, RG316 R161322000W
Product Description
Product Model: 63-7474-74Product Brand: Radiall Feature […]
Contact Us
Product Details
Product Model: 63-7474-74
Product Brand: Radiall
Features
- Straight sealed N plugs for panel mounting. Straight female N plugs with cable gland for panel mounting (with nut). The screw coupling on this connector ensures good HF performance. High permissible power.
Spec
- Quantity:1piece
- G***er : Female
- Cable Type : RG179, RG187, RG188, RG316
- Mounting Type : Panel Mount
- Termination Method : Clamp
- Body Orientation : Straight
- Impedance : 50Ω
- Operating Frequency : 0 → 11GHz
- Minimum Operating Temperature : -55 °C
- Maximum Operating Temperature : +155 °C
- Contact Plating : Gold over Nickel
- Contact Material : Beryllium Copper
- CODE No.:295-6854
