63-7474-24 Radiall Straight 50Ω Cable Mount SMA Connector, Crimp Termination RG141, RG58 R125075000
Product Description
Product Model: 63-7474-24Product Brand: Radiall Feature […]
Contact Us
Product Details
Product Model: 63-7474-24
Product Brand: Radiall
Features

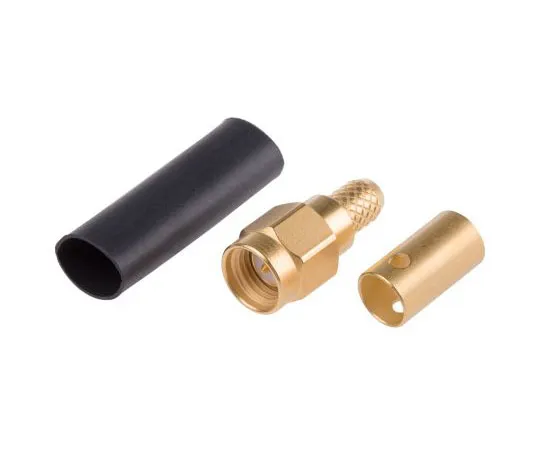

- Radiall 50 Ohm SMA RF Coaxial Crimp Plug Connectors, Stainless Steel Body. 50 Ohm SMA RF coaxial crimp plug connectors with screw-on mating and a crimp termination. These 50 Ohm RF coax SMA cable mount plugs have a gold plated stainless stainless steel body, gold plated centre contact, are supplied with a silicone gasket and are for *** with a variety of RF coaxial cable types.
Spec
- Quantity:1box(100pieces)
- G***er : Male
- Mounting Type : Cable Mount
- Body Orientation : Straight
- Cable Type : RG141, RG58
- Termination Method : Crimp
- Impedance : 50Ω
- Operating Frequency : 0 → 12.4GHz
- Minimum Operating Temperature : -65 °C
- Maximum Operating Temperature : +165 °C
- Contact Plating : Gold over Nickel
- CODE No.:170-2458
