Features

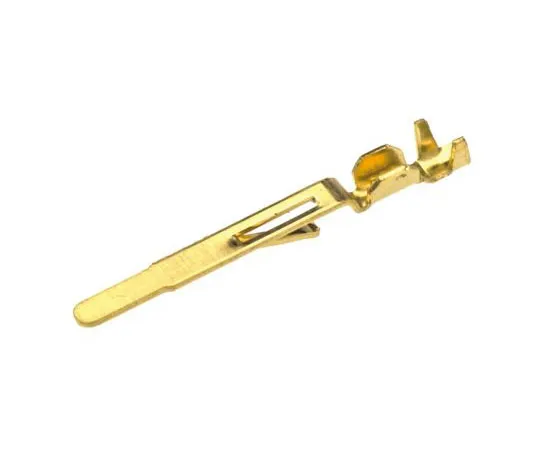

• These connectors are Non-G***ered. Standard and Low Current Contacts. This range of Cannon DL Crimp Contacts are available with both 20μ inch and 50μ inch Gold Plating. The 20μ inch Gold Plated beryllium-copper hermaphrodite contacts are ***d for applications requiring over 100 milliamps to 5 amps and are physically the same and will mate with each other and can be ***d in both plug and socket bodies, see stock number ; 484-8676 484-8676 for 20-22 AWG and ; 484-8698 484-8698 for 24-26 AWG. The 50μ inch Gold Plated beryllium-copper contacts are ***d for applications requiring microamps to 5 amps (low current) and are physically slightly different with the Plug contact having a Bump and the Receptacle contact being Flat: ; 295-3603 295-3603 ZIF low current plug contact (Bump) 20/22 AWG ; 295-3619 295-3619 ZIF low current socket contact (Flat) 20/22 AWG ; 295-3574 295-3574 ZIF low current plug contact (Bump) 24/26 AWG ; 295-3580 295-3580 ZIF low current socket contact (Flat) 24/26 AWG. Standard:. Low Current:. 0.5μin. gold plated beryllium copper contacts for plug and socket bodies For high speed digital and low current work i.e. 'dry circuit' less than 100mA Design minimises contamination build-up
