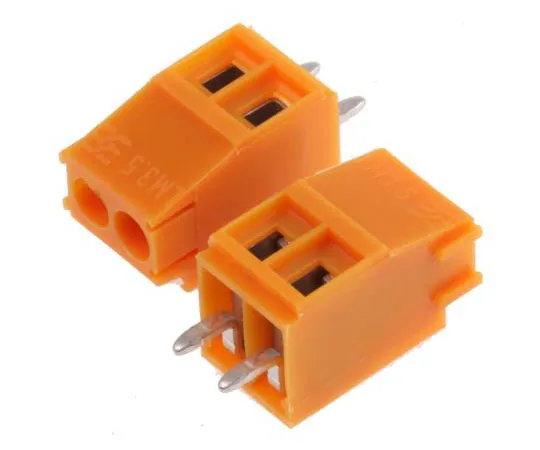

63-7473-64 Weidmüller LM Non-F***d Terminal Block, 2 Way/Pole, Solder Terminals, 28 → 14 AWG Through Hole, Nylon, 320 V LM 3.50/02/90 3.2SN ORBX - 1667750000
Product Description
Product Model: 63-7473-64Product Brand: Weidmuller Feat […]
Contact Us
Product Details
Product Model: 63-7473-64
Product Brand: Weidmuller
Features
- Weidmüller 3.5mm Pitch Vertical Mount Terminals. LM Series screw clamp terminals ext*** cost saving and space saving requirements on printed circuit boards. The terminals feature a proven clamping yoke connection. Features and Benefits. Small and compact in size Faster speed of assembly Accepts up to 1.5 mm² (28-16 AWG) conductors 2 and 3 way models are single height and side stackable 4 to 16 way models are supplied as double height modules
Spec
- Quantity:1bag(5pieces)
- Series : LM
- Number of Ways : 2
- Mounting Type : Through Hole
- Pitch : 3.5mm
- Current Rating : 16A
- Termination Method : Solder
- Wire Size : 28 → 14 AWG
- Material : Nylon
- Colour : Orange
- Minimum Operating Temperature : -20°C
- Maximum Operating Temperature : +100°C
- Contact Material : Copper Alloy
- Contact Plating : Tin
- CODE No.:294-7642
