Electronic/Electrical Parts and Controll Equipments

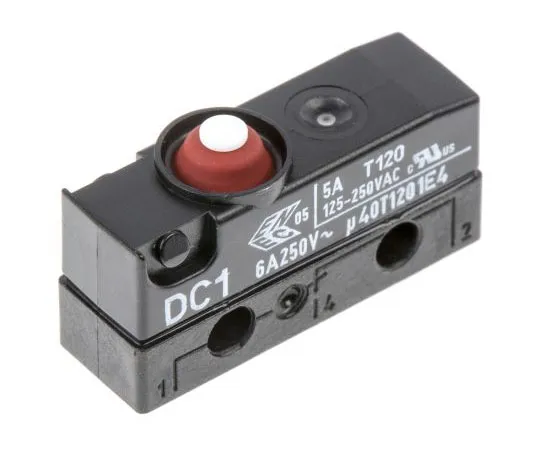

63-7473-54 SPDT-NO/NC Button Microswitch, 10 A @ 250 V ac DC1C-A1AA
Product Description
Product Model: 63-7473-54Product Brand: ZF Features ENE […]
Contact Us
Product Details
Product Model: 63-7473-54
Product Brand: ZF
Features
- ENEC; UL. IP67 V4 Microswitches (DC1 6A). Sealed switch with IP67 protection Available with various terminations, including PCB mount, solder, quick connect (2.8 x 0.5mm), or pre-wired (500mm x 0.75mm ;sup>2 ;/sup>) lead Housing material PET/PBT (UL 94V-0) POM (T85); PBT (T120) actuator Operating temperature range -40 → 120°C Maximum operating temperature for pre-wired versions 105°C Ice-free lever option suitable for operation in cold damp environments where a pivoted lever may freeze up Height 11.65mm, Width 20mm, Depth 6.5mm
Spec
- Quantity:1piece
- Actuator Type : Button
- Terminal Type : Solder
- Contact Current Rating : 10 A @ 250 V ac
- Contact Configuration : SPDT-NO/NC
- IP Rating : IP6K7
- Operating Force : 1.96 N
- Minimum Operating Temperature : -40°C
- Maximum Operating Temperature : +120°C
- Contact Material : Silver Alloy
- Mechanical Life : 1000000Operations
- Operating Temperature Range : -40 → +120°C
- CODE No.:294-5905
