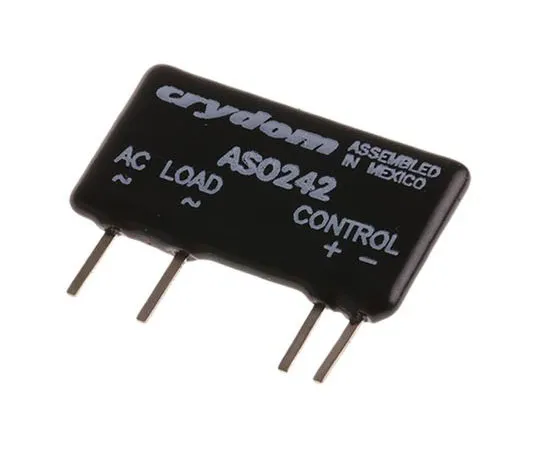

63-7471-55 Sensata / Crydom 2 A rms Solid State Relay, Zero Cross, PCB Mount, SCR, 280 V rms Maximum Load ASO242
model:
63-7471-55
brand:
Sensata / Crydom
Product Description
Product Model: 63-7471-55Product Brand: Sensata / Crydo […]
Contact Us
Product Details
Product Model: 63-7471-55
Product Brand: Sensata / Crydom
Features
- UL, CSA (< 218-1909') 218-1909/ & < 291-2450') 291-2450. Derating will limit the maximum load current at temperatures above 20°C. (50°C for stock nos. < 218-1909') 218-1909/ , < 291-2450') 291-2450 and < 738-5507') 738-5507/. ASO/DM - up to 3A in a Miniature SIL SSR. DC controlled AC models - SCR output DC model - MOSFET output Can switch loads up to 3A Isolation voltage 2500 Vrms All have zero cross switching except for stock nos. < 291-2466') 291-2466/ and < 738-5507') 738-5507/ Applications include lighting, inductive loads e.g. solenoids, motors Operating temperature range: -30 to +80°C Dimensions: H19.0mm x W10.2mm x D24.1mm
Spec
- Quantity:1piece
- Minimum Load Current : 0.06 A
- Maximum Load Current : 2 A rms
- Mounting Type : PCB Mount
- Maximum Load Voltage : 280 V rms
- Maximum Control Voltage : 10 V dc
- Switching Type : Zero Cross
- Output Device : SCR
- Dimensions : 24.1 x 5.1 x 12.7mm
- Minimum Operating Temperature : -30°C
- CODE No.:291-2450
