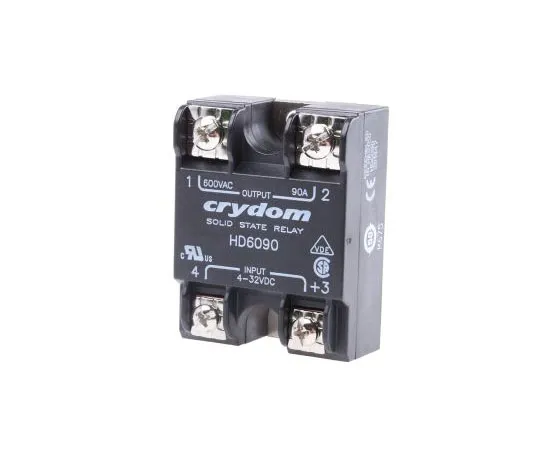

63-7471-52 Sensata / Crydom 90 A Solid State Relay, Zero Cross, Panel Mount, SCR, 660 V Maximum Load HD6090
model:
63-7471-52
brand:
Sensata / Crydom
Product Description
Product Model: 63-7471-52Product Brand: Sensata / Crydo […]
Contact Us
Product Details
Product Model: 63-7471-52
Product Brand: Sensata / Crydom
Features
- Derating will limit the maximum load current at temperatures above 25 °C. UL recognised component for Canada and US, VDE. Heat sink not included. For load current de-rating and heat sink details see manufacturers datasheet. Crydom HA/HD Series Solid State Relays. Crydom HA/HD series robust and versatile panel mount solid state relays. These powerful SSRs have superior thermal performance thanks to the *** of DBC technology. The HA/HD series solid state relays feature anti-rotation barriers, flexible control voltage options and a wide range of power ratings. Features and Benefits. SCR output for heavy industrial loads. Zero Voltage or instantaneous turn-on outputs. UL/CSA/VDE Approved, CE Compliant to EN60950-1. Improved SEMS screw and washer. Anti-rotation barriers. AC or DC control. Direct Bond Copper (DBC) substrate. EMC compliant to Level 3. Direct power lead frame. Epoxy free design
Spec
- Quantity:1piece
- Minimum Load Current : 40 mA
- Maximum Load Current : 90 A
- Mounting Type : Panel Mount
- Maximum Load Voltage : 660 V
- Maximum Control Voltage : 32 V
- Switching Type : Zero Cross
- Output Device : SCR
- Dimensions : 58.4 x 45.7 x 23mm
- Maximum Operating Temperature : +80°C
- CODE No.:291-2270
