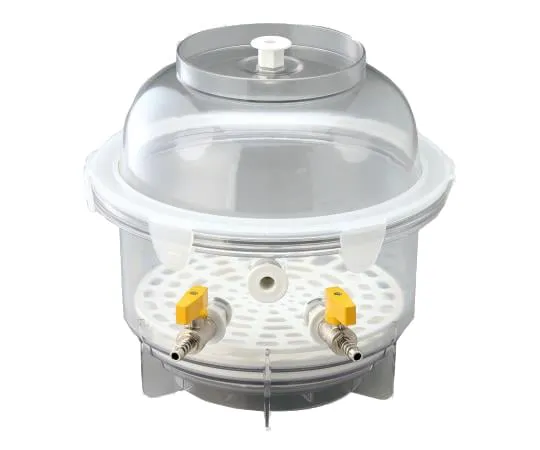

2-931-01 Molding Vacuum Desiccator RVD-250
Product Description
Product Model: 2-931-01Product Brand: AS ONE Corporatio […]
Contact Us
Product Details
Product Model: 2-931-01
Product Brand: AS ONE Corporation
Features
- Since it comes with a lock, it has a high sealing property at normal pressure and can be easily vacuumed.
- The position of the valve and vacuum gauge can be changed according to the application and space.
- By attaching a valve and a vacuum gauge on the side, it can be ***d in a stack.
- Since 2 valves are included, the purge operation is easy and there is no trouble when opening and closing.
- It comes with a silica gel dish and can be ***d as a desiccator for normal pressure.
- High vacuum retention without grease is possible by precision machining mold technology.
- A new vacuum desiccator that foc***s on "ease of ***"
Spec
- Material: Main / PC (polycarbonate), shelf board Lock silica gel plate / PP (polypropylene), O-ring / Silicone rubber, Valve / brass
- inner diameter: φ 250 mm
- Vacuum valve diameter: The outer diameter of about 10 mm
- Allowable vacuum: about 133 Pa
- Main body capacity: about 6.5 L
- Weight: About 2.5 kg
- shelf board Load tolerance: 5 kg
- Accessories: Lock shelf board, silica gel plate and 5 bushing (Inside 2 pieces no hole)
- middle plate Size (mm): φ 250
- Valve x 2 pieces
- * Magnetic shelf board is not included. The supplied shelf board is made of PP (polypropylene)
- Recomm***ed vacuum pumps: (2-944-02) Dry vacuum pumps GM-20 D, (2-928-01) oil rotation vacuum pumps AVRI-30, (2-924-01) oil rotation vacuum pumps AVRD-60
- Model Number: RVD-250
