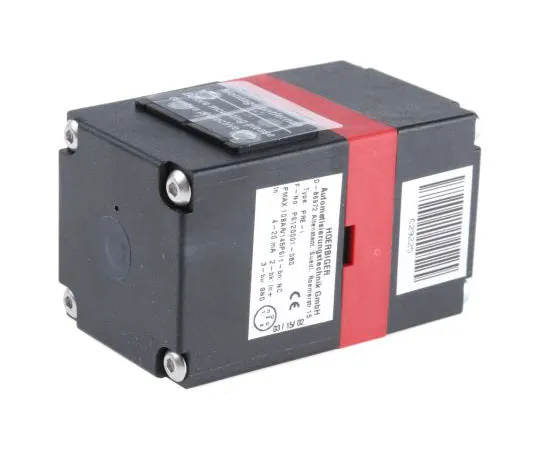

63-7470-98 Parker Origa Pneumatic Regulator 200L/min G 1/8, 0 → 8bar PS120001-080-000
Product Description
Product Model: 63-7470-98Product Brand: Parker Origa Fe […]
Contact Us
Product Details
Product Model: 63-7470-98
Product Brand: Parker Origa
Features
- The Regulator is supplied without the Mounting Block and Cable. To order a Piezo Regulator, Mounting Block and Cable please quote stock number < 290-3406') 290-3406/. G 1/8 Piezo Type Pressure Regulator. Compact, lightweight design Temperature range: 0° to +50°C Typical flow: 130l/min Fast response: 42Hz High precision and reliability Low power consumption Integrated closed loop pressure measurement Requires dry air filtered to 5μm; 1.5 to 10 bar Weight: 180g
Spec
- Quantity:1piece
- Port Connection : G 1/8
- Minimum Outlet Pressure : 0bar
- Maximum Outlet Pressure : 8bar
- Maximum Input Pressure : 10bar
- Manufacturer Series : Piezo
- Port Connection Thread Size : 1/8 in
- Maximum Flow Rate : 350L/min
- Typical Flow Rate : 200L/min
- Integral Check Valve : Without Check Valve
- Port Connection Thread Standard : G
- Minimum Operating Temperature : 0°C
- Maximum Operating Temperature : +50°C
- CODE No.:290-3412
