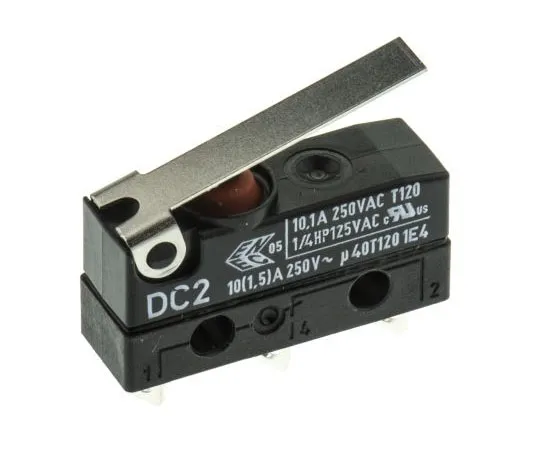

63-7470-81 SPDT-NO/NC Hinge Lever Microswitch, 10.1 A @ 250 V ac DC2C-A1LB
Product Description
Product Model: 63-7470-81Product Brand: ZF Features ENE […]
Contact Us
Product Details
Product Model: 63-7470-81
Product Brand: ZF
Features
- ENEC, UL. IP67 V4 Microswitches (DC2 10A). Sealed actuator to IP67 Contact rating 10A Available with various terminations, including PCB mount, solder, quick connect (2.8 x 0.5mm) Housing material PET/PBT (UL 94V-0) POM (T85); PBT (T120) actuator Silver-nickel contacts Operating temperature range -40 → 120°C Maximum operating temperature for pre-wired versions 105°C SPDT contact configuration Mechanical life >2x10 ;sup>6 ;/sup> Height 11.65mm, Width 20mm, Depth 6.5mm Dimensions: H11.65 x W20 x D6.5mm
Spec
- Quantity:1piece
- Actuator Type : Hinge Lever
- Terminal Type : Solder
- Contact Current Rating : 10.1 A @ 250 V ac
- Contact Configuration : SPDT-NO/NC
- IP Rating : IP6K7
- Operating Force : 1.47 N
- Minimum Operating Temperature : -40°C
- Maximum Operating Temperature : +120°C
- Contact Material : Silver Alloy
- Mechanical Life : 1000000Operations
- Operating Temperature Range : -40 → +120°C
- CODE No.:290-0508
