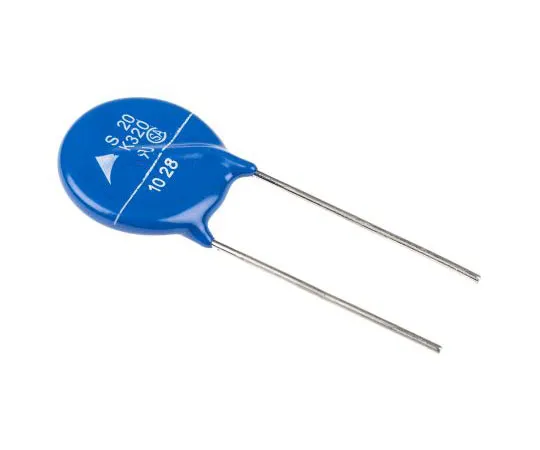

63-7470-53 EPCOS Standard Series Metal Oxide Varistor 540pF 100A, Clamping 840V, Varistor 510V B72220S0321K101
Product Description
Product Model: 63-7470-53Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-7470-53
Product Brand: EPCOS
Features
- UL, CSA, VDE. Metal Oxide Varistors Standard Series. Standard radial epoxy-coated MOV with tinned-copper leads. Tinned copper wire leads with a ceramic body coated with epoxy resin Rated for surge current (8//20 μs) and for energy (2ms)
Spec
- Quantity:1bag(5pieces)
- Varistor Voltage : 510V
- Maximum AC Voltage Rating : 320V
- Maximum DC Voltage Rating : 420V
- Clamping Voltage : 840V
- Clamping Current : 100A
- Energy : 184J
- Series : Standard
- Diameter : 21.5mm
- Maximum Surge Current : 8000A
- Capacitance : 540pF
- Thickness : 5.8mm
- Dimensions : 21.5 (Dia.) x 5.8mm
- Lead Pitch : 10mm
- CODE No.:289-7711
