Electronic/Electrical Parts and Controll Equipments

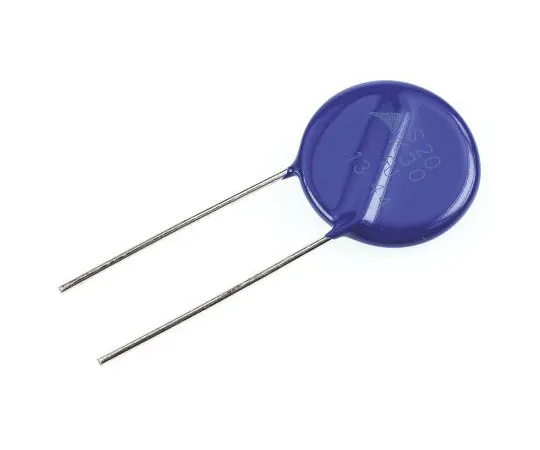

63-7470-47 EPCOS Standard Series Metal Oxide Varistor 9.35nF 20A, Clamping 93V, Varistor 47V B72220S0300K101
Product Description
Product Model: 63-7470-47Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-7470-47
Product Brand: EPCOS
Features
- UL, CSA, VDE. Metal Oxide Varistors Standard Series. Standard radial epoxy-coated MOV with tinned-copper leads. Tinned copper wire leads with a ceramic body coated with epoxy resin Rated for surge current (8//20 μs) and for energy (2ms)
Spec
- Quantity:1set(250pieces)
- Varistor Voltage : 47V
- Maximum AC Voltage Rating : 30V
- Maximum DC Voltage Rating : 38V
- Clamping Voltage : 93V
- Clamping Current : 20A
- Energy : 26J
- Series : Standard
- Diameter : 21.5mm
- Maximum Surge Current : 2000A
- Capacitance : 9.35nF
- Thickness : 4.9mm
- Dimensions : 21.5 (Dia.) x 4.9mm
- Lead Pitch : 10mm
- CODE No.:170-2885
