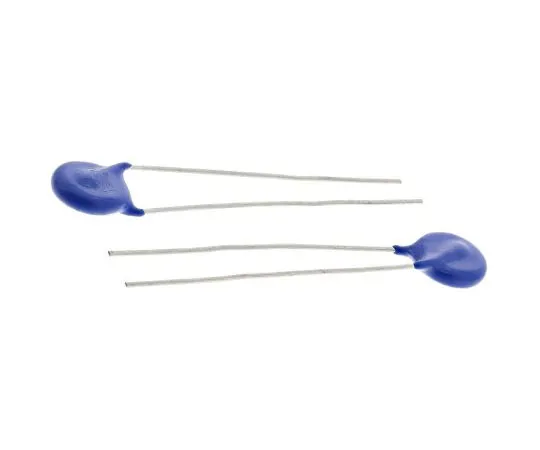

63-7470-39 EPCOS Standard Series Metal Oxide Varistor 1.05nF 2.5A, Clamping 110V, Varistor 56V B72207S0350K101
Product Description
Product Model: 63-7470-39Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-7470-39
Product Brand: EPCOS
Features
- UL, CSA, VDE. Metal Oxide Varistors Standard Series. Standard radial epoxy-coated MOV with tinned-copper leads. Tinned copper wire leads with a ceramic body coated with epoxy resin Rated for surge current (8//20 μs) and for energy (2ms)
Spec
- Quantity:1set(1000pieces)
- Varistor Voltage : 56V
- Maximum AC Voltage Rating : 35V
- Maximum DC Voltage Rating : 45V
- Clamping Voltage : 110V
- Clamping Current : 2.5A
- Energy : 2.5J
- Series : Standard
- Diameter : 9mm
- Maximum Surge Current : 250A
- Capacitance : 1.05nF
- Thickness : 3.9mm
- Dimensions : 9 (Dia.) x 3.9mm
- Lead Pitch : 5mm
- CODE No.:170-2843
