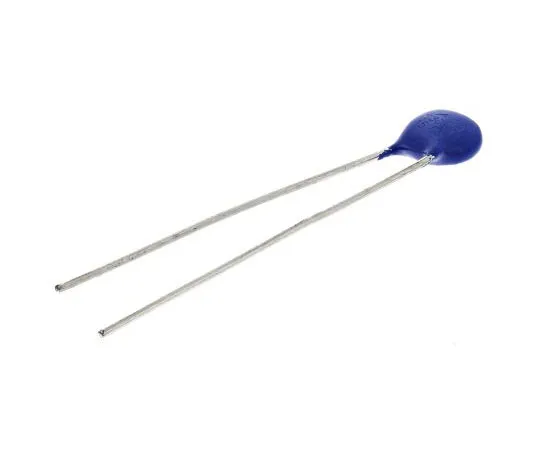

63-7470-36 EPCOS Standard Series Metal Oxide Varistor 720pF 1A, Clamping 93V, Varistor 47V B72205S0300K101
Product Description
Product Model: 63-7470-36Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-7470-36
Product Brand: EPCOS
Features
- UL, CSA, VDE. Metal Oxide Varistors Standard Series. Standard radial epoxy-coated MOV with tinned-copper leads. Tinned copper wire leads with a ceramic body coated with epoxy resin Rated for surge current (8//20 μs) and for energy (2ms)
Spec
- Quantity:1bag(5pieces)
- Varistor Voltage : 47V
- Maximum AC Voltage Rating : 30V
- Maximum DC Voltage Rating : 38V
- Clamping Voltage : 93V
- Clamping Current : 1A
- Energy : 0.9J
- Series : Standard
- Diameter : 7mm
- Maximum Surge Current : 100A
- Capacitance : 720pF
- Thickness : 3.6mm
- Dimensions : 7 (Dia.) x 3.6mm
- Lead Pitch : 5mm
- CODE No.:289-7430
