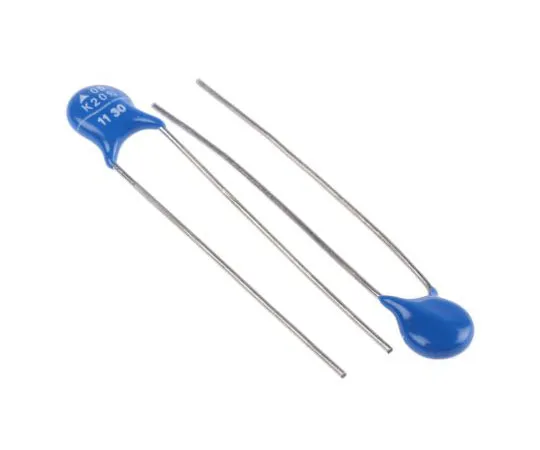

63-7470-32 EPCOS Standard Series Metal Oxide Varistor 980pF 1A, Clamping 65V, Varistor 33V B72205S0200K101
Product Description
Product Model: 63-7470-32Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-7470-32
Product Brand: EPCOS
Features
- UL, CSA, VDE. Metal Oxide Varistors Standard Series. Standard radial epoxy-coated MOV with tinned-copper leads. Tinned copper wire leads with a ceramic body coated with epoxy resin Rated for surge current (8//20 μs) and for energy (2ms)
Spec
- Quantity:1set(1000pieces)
- Varistor Voltage : 33V
- Maximum AC Voltage Rating : 20V
- Maximum DC Voltage Rating : 26V
- Clamping Voltage : 65V
- Clamping Current : 1A
- Energy : 0.6J
- Series : Standard
- Diameter : 7mm
- Maximum Surge Current : 100A
- Capacitance : 980pF
- Thickness : 3.5mm
- Dimensions : 7 (Dia.) x 3.5mm
- Lead Pitch : 5mm
- CODE No.:170-2876
