63-7470-30 EPCOS Standard Series Metal Oxide Varistor 320pF 100A, Clamping 1500V, Varistor 910V B72220S0551K101
Product Description
Product Model: 63-7470-30Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-7470-30
Product Brand: EPCOS
Features

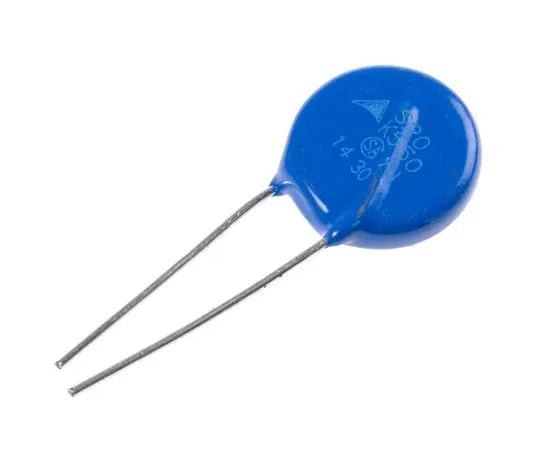

- UL, CSA, VDE. Metal Oxide Varistors Standard Series. Standard radial epoxy-coated MOV with tinned-copper leads. Tinned copper wire leads with a ceramic body coated with epoxy resin Rated for surge current (8//20 μs) and for energy (2ms)
Spec
- Quantity:1set(200pieces)
- Varistor Voltage : 910V
- Maximum AC Voltage Rating : 550V
- Maximum DC Voltage Rating : 745V
- Clamping Voltage : 1500V
- Clamping Current : 100A
- Energy : 210J
- Series : Standard
- Diameter : 21.5mm
- Maximum Surge Current : 6500A
- Capacitance : 320pF
- Thickness : 7.5mm
- Dimensions : 21.5 (Dia.) x 7.5mm
- Lead Pitch : 10mm
- CODE No.:170-2874
