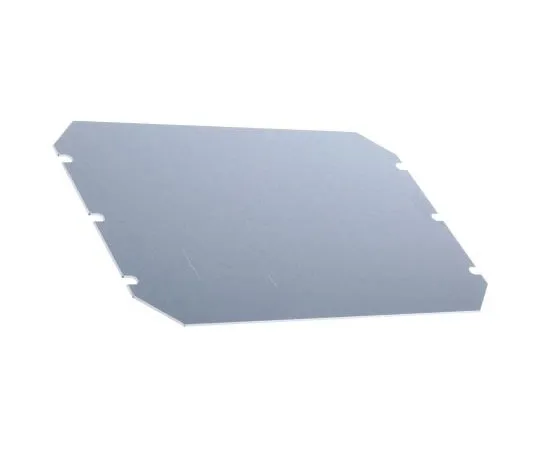

63-7469-93 Fibox Mounting Plate for *** with CAB PC/ABS Cabinet EKIV 23 MOUNTING PLATE
Product Description
Product Model: 63-7469-93Product Brand: Fibox Features […]
Contact Us
Product Details
Product Model: 63-7469-93
Product Brand: Fibox
Features
- EN 60529, EN 62262. Fibox CAB PC Wall Mount Enclosures. High impact resistant, glass filled polycarbonate enclosures offering a viable and cost effective alternative to steel wall mounting enclosures. The material ***d is Halogen free and is flame tested to UL94-V2 (self-extinguishing). Features and Benefits. Polycarbonate light grey RAL 7035 Polyurethane gasket IP65 and IK08 protection Electrically insulated Halogen free UV resistant Operating temperature range: -40°C to +80°C. Accessories (ordered separately). Swing doors/front plates, aluminium, 1.5 mm thick Mounting plates, galvanised steel, 1.5 mm thick Swing door kit for aluminium front plates. Contains a pair of hinges (in kit form). Each kit is for one swing door and comes with full installation instructions Wall Brackets, 4 pieces, includes screws
Spec
- Quantity:1piece
- Type : Mounting Plate
- Material : Steel
- Dimensions : 170 x 1.5 x 270mm
- Length : 170mm
- Width : 1.5mm
- Height : 270mm
- For Use With : CAB PC/ABS Cabinet
- CODE No.:289-6178
