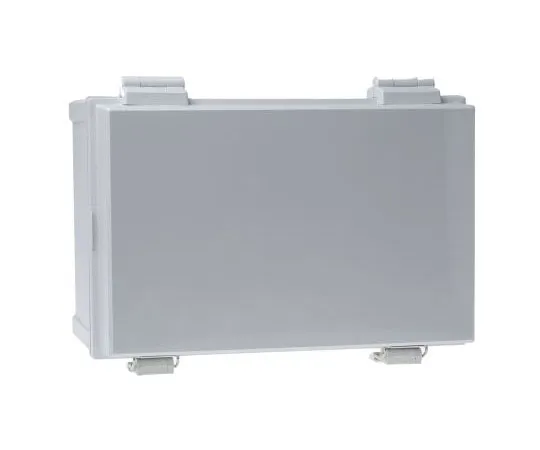

63-7469-85 Fibox CAB PC, Polycarbonate Wall Box, IP65, 180mm x 300 mm x 200 mm CAB PC 302018 G CABINET
Electronic/Electrical Parts and Controll Equipments

63-7469-85 Fibox CAB PC, Polycarbonate Wall Box, IP65, 180mm x 300 mm x 200 mm CAB PC 302018 G CABINET

model: 63-7469-85
brand: Fibox

Product Description

Product Model: 63-7469-85Product Brand: Fibox Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-7469-85
Product Brand: Fibox

Features

  • EN 60529, EN 62262. Fibox CAB PC Wall Mount Enclosures. High impact resistant, glass filled polycarbonate enclosures offering a viable and cost effective alternative to steel wall mounting enclosures. The material ***d is Halogen free and is flame tested to UL94-V2 (self-extinguishing). Features and Benefits. Polycarbonate light grey RAL 7035 Polyurethane gasket IP65 and IK08 protection Electrically insulated Halogen free UV resistant Operating temperature range: -40°C to +80°C. Accessories (ordered separately). Swing doors/front plates, aluminium, 1.5 mm thick Mounting plates, galvanised steel, 1.5 mm thick Swing door kit for aluminium front plates. Contains a pair of hinges (in kit form). Each kit is for one swing door and comes with full installation instructions Wall Brackets, 4 pieces, includes screws

Spec

  • Quantity:1piece
  • External Height : 300 mm
  • External Width : 200 mm
  • External Depth : 180mm
  • Body Material : Polycarbonate
  • Transparent Door : No
  • IP Rating : IP65
  • Chassis Plate : No
  • Door Lock Type : Latch
  • Gland Plate : No
  • Colour : Grey
  • Series : CAB PC
  • Fixing Kit : Yes
  • Internal Mounting Type : Panel
  • CODE No.:289-5989
