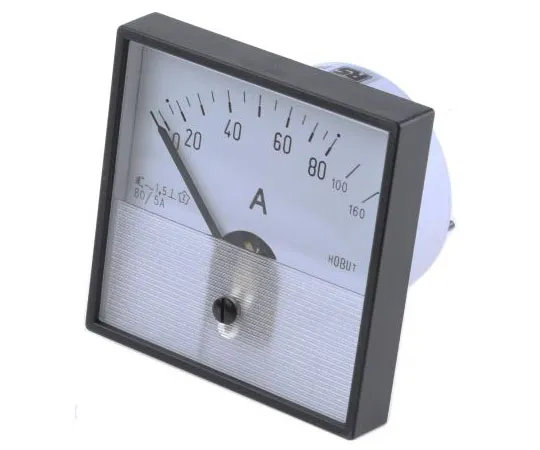

63-7468-33 HOBUT Analogue Panel Ammeter 0/80/160A For 80/5A CT AC, 72mm x 72mm Moving Iron PD72MIS5A2/2-001 0/80/160A
Product Description
Product Model: 63-7468-33Product Brand: HOBUT Features […]
Contact Us
Product Details
Product Model: 63-7468-33
Product Brand: HOBUT
Features
- mounting brackets. Ammeter overload is twice current rating - shown within (brackets) in scale range. AC Moving Iron Current and Voltage Meters. A series from 72 x 72 mm DIN sized panel meter with a horizontal scale, ***d widely in the panel building industry. Panel Meter with integrated, horizontal 90° scale Accuracy class 1.5 to BS89 IEC51 Scaled up to 40A direct connected Flame retardant case to UL94V0 Protection Class IP52 (front of panel) Fixing via single hole using ‘U ‘ clamp (anti-rotation pin supplied), or 4-point M3
Spec
- Quantity:1piece
- Maximum Value : 0/80/160A For 80/5A CT
- Current Type : AC
- Moving Element : Moving Iron
- Cutout Height : 72mm
- Cutout Width : 72mm
- Depth : 30.5mm
- Meter Accuracy : Class 1.5
- Minimum Temperature : -25°C
- Maximum Temperature : +40°C
- Measurement Range : 0/80/160A For 80/5A CT
- CODE No.:287-2093
