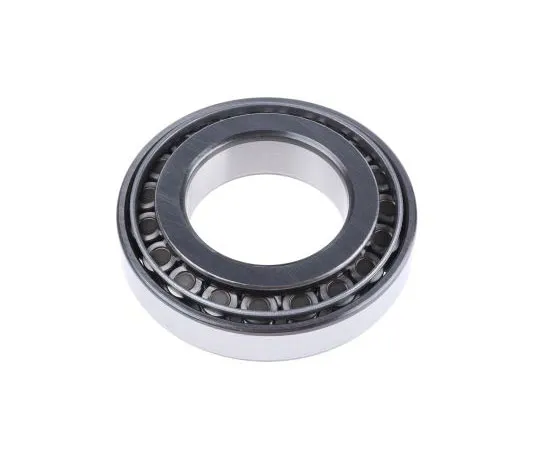

63-7468-07 Taper Roller Bearing 30209 J2/Q, 45mm I.D, 85mm O.D 30209
Product Description
Product Model: 63-7468-07Product Brand: SKF Features Me […]
Contact Us
Product Details
Product Model: 63-7468-07
Product Brand: SKF
Features
- Metric. Single-row taper roller bearings can only take axial loads in one direction. The forces generated in the bearing by radial loads, and the force acting axially, must be offset by an external counter force. This is why in practice single-row taper bearings are mounted against a second taper roller bearing. Dimensions comply with data in DIN ISO 355 and DIN 720, 1979
Spec
- Quantity:1piece
- Inside Diameter : 45mm
- Outside Diameter : 85mm
- Roller Bearing Type : Taper
- Race Width : 20.75mm
- Bore Type : Tapered
- Material : Metal
- Static Load Rating : 76.5kN
- Cage Material : Steel
- Number of Rows : 1
- Dynamic Load Rating : 76.5kN
- End Type : Open
- Reference Speed : 6300rpm
- Limiting Speed : 8000rpm
- Fatigue Limit Load : 8.65kN
- CODE No.:286-8347
