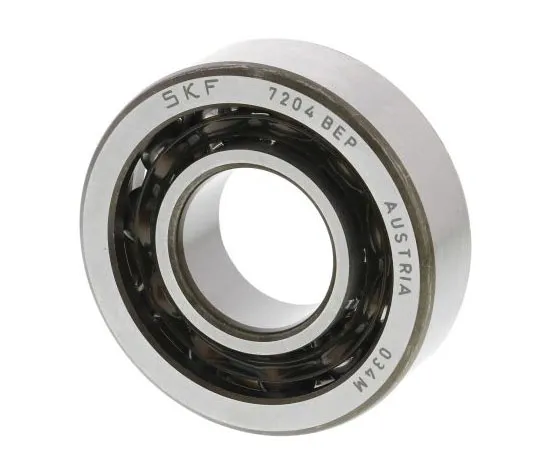

63-7466-71 20mm Angular Contact Ball Bearing 47mm O.D 7204 BEP
Product Description
Product Model: 63-7466-71Product Brand: SKF Features Th […]
Contact Us
Product Details
Product Model: 63-7466-71
Product Brand: SKF
Features
- These single row angular-contact ball bearings can only accept axial loads in one direction. The bearings must therefore be mounted against a second, conventional bearing. Single Row - Angular Contact - Open Type. These single row angular bearings have a high and low shoulder on both raceways. This allows a large number of balls to be accommodated in the bearing to give it a relatively high loading capacity. The bearings have a contact angle of 40° and are therefore ideal for withstanding high axial loads They are non-separable and can tolerate relatively high speeds
Spec
- Quantity:1piece
- Inside Diameter : 20mm
- Outside Diameter : 47mm
- Ball Bearing Type : Angular Contact
- Race Width : 14mm
- End Type : Open
- Number of Rows : 1
- Static Load Rating : 8.3kN
- Material : Steel
- Cage Material : Fibreglass Reinforced Nylon 66
- Race Type : Plain
- Dynamic Load Rating : 14kN
- Bore Type : Parallel
- CODE No.:285-1541
