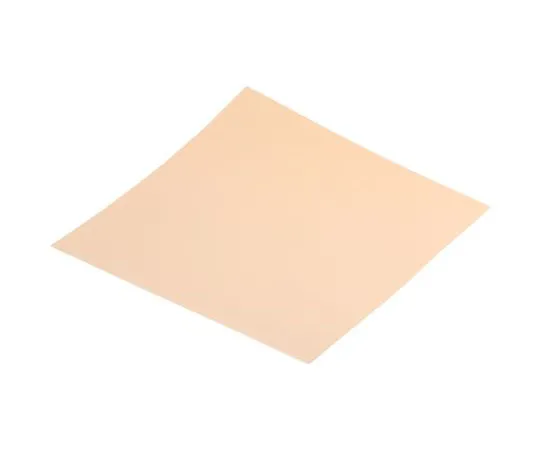

63-7465-52 Thermal Interface Sheet, Fibreglass, 1.6W/m·K, 12 x 12in 0.127mm, Self-Adhesive SP800-0.005-AC-1212
Product Description
Product Model: 63-7465-52Product Brand: Bergquist Featu […]
Contact Us
Product Details
Product Model: 63-7465-52
Product Brand: Bergquist
Features
- Sil-Pad insulators - series 800-S. Sheets on which heat-emitting power semi-conductors can be mounted directly with complete safety. This material is specially reserved for applications in which pressure between the transistor and the radiator is low. Available in dry or self-adhesive model (SIL-Pad 800-S AC).
Spec
- Quantity:1piece
- Dimensions : 12 x 12in
- Thickness : 0.127mm
- Length : 12in
- Width : 12in
- Thermal Conductivity : 1.6W/m·K
- Material : Fibreglass
- Self-Adhesive : Yes
- Minimum Operating Temperature : -60°C
- Maximum Operating Temperature : +180°C
- Hardness : Shore A 91
- Material Trade Name : Sil-Pad 800
- Operating Temperature Range : -60 → +180 °C
- CODE No.:284-0800
