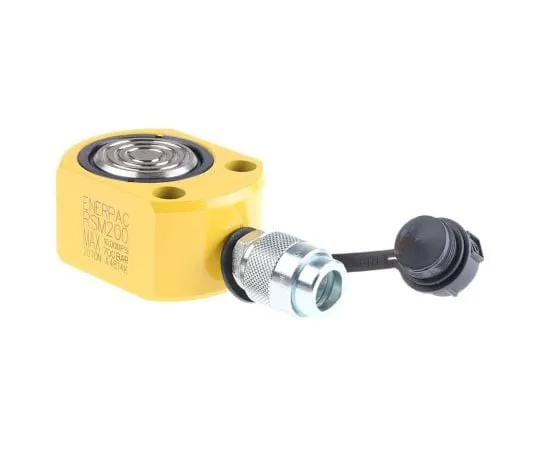

63-7464-76 Enerpac Single, Portable Low Height Hydraulic Cylinder, RSM200, 20t, 11mm stroke RSM200
Product Description
Product Model: 63-7464-76Product Brand: Enerpac Feature […]
Contact Us
Product Details
Product Model: 63-7464-76
Product Brand: Enerpac
Features
- All cylinder capacities are specified in US ton (short ton). 1 US ton : 907.2Kg. Flat - Low Height Cyllinders. Compact, flat profile, RSM-Flat Jac ® spring return cylinders designed for *** in extremely confined working spaces where most other cylinders will not fit Mounting holes permit easy fixing Grooved plunger *** requires no saddle Replacement seal kits are available
Spec
- Quantity:1piece
- Manufacturer Series : RSM
- Single/Double Acting : Single
- Capacity : 20t
- Stroke : 11mm
- Closed Height : 51mm
- Ext***ed Height : 62mm
- Cylinder Effective Area : 28.7cm²
- Oil Capacity : 32cm³
- Outside Diameter : 101 x 76mm
- Maximum Operating Pressure : 700 bar
- Weight : 3.1kg
- CODE No.:283-0998
