Electronic/Electrical Parts and Controll Equipments

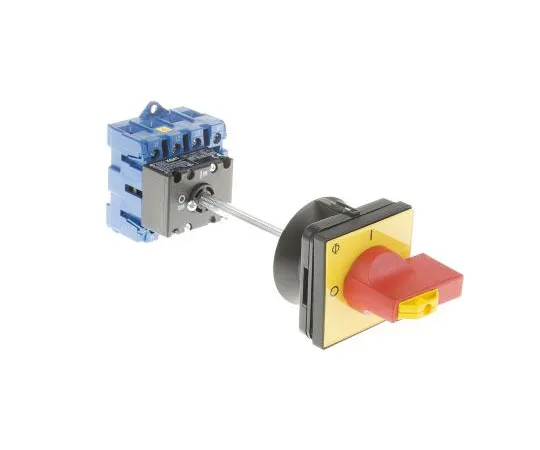

63-7464-29 4 Pole Non F***d Isolator Switch, 40 A, 15 kW, IP65 KG41BT204/GBA006VE
model:
63-7464-29
brand:
Kraus & Naimer
Product Description
Product Model: 63-7464-29Product Brand: Kraus & Nai […]
Contact Us
Product Details
Product Model: 63-7464-29
Product Brand: Kraus & Naimer
Features
- BS EN 60947-3, EN60947-3, IEC 60947-3, VDE 0660, EN 60204-1. Motor rating refers to AC23A type and Motor load rating refers to AC3. Switch shaft is included. 3 ; 4-pole Ext***ed Shaft Switch Disconnectors IP65 Rated. Padlockable (x4) in "OFF" position Interlocked in "ON" position to prevent panel door being opened while switch is "ON"
Spec
- Quantity:1piece
- Number of Poles : 4
- Maximum Current : 40 A
- Power Rating : 15 kW
- IP Rating : IP65
- Accepts Padlocks : Yes
- Voltage Rating : 690 V ac
- Electrical Phase : 3
- Length : 66mm
- Width : 251mm
- Depth : 64mm
- Terminal Type : Wire Lead
- CODE No.:282-1499
